High Recovery Rate Mini Gold Mining Dredger Customized 8HP Power
Price:
$5,500/sets >=1 sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
Keda
Product Description
Customized Mini Gold Washing Dredger - The Ultimate Mining Solution for Gold Recovery

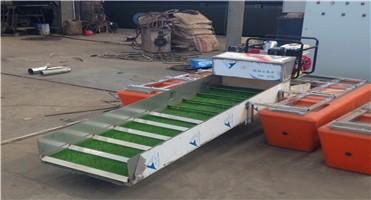

Our mini gold dredger features a gold chute for high recovery rates, powered by a renowned engine with pump. The float is constructed from high-strength, lightweight plastic. Compact in size and easy to transport, this dredger is ideal for gold mining in small river channels.
Technical Specifications
| Model | QFT3-2 | QFT4-3 | QFT5-3 |
|---|---|---|---|
| Dimension | 2300×1500×1000mm | 2500×1500×1000mm | 2500×1500×1000mm |
| Diesel Engine | |||
| Model | RZ170F | RZ178F | RZ186FA |
| Power | 5hp | 7hp | 12hp |
| Rotate Speed | 3600rpm | 3600rpm | 3600rpm |
| Fuel Consumption | ≤284g/Kw*h | ≤283g/Kw*h | ≤280g/Kw*h |
| Fuel Capacity | 2.65L | 3.3L | 5.5L |
| Pump | 1 set | 1 set | 2 sets |
| Pump Dimension (L×W×H) | 550×450×450mm | 550×470×450mm | 550×500×480mm |
| Pump Diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
| Water Flow | 33m³/h | 60m³/h | 80m³/h |
| Head | 30m | 30m | 25m |
| Dredging Depth | 0.5-0.8m | 0.5-0.8m | 1.5m |
| Work Capacity | 5m³/h | 8m³/h | 13m³/h |
| Gold Chute | |||
| Dimension (L×W) | 400×1500mm | 500×1700mm | 500×1700mm |
| Features | With gold felt | With gold felt | With gold felt |
| Float | |||
| Dimension (L×W×H) | 1600×395×370mm | 1600×395×370mm | 1600×395×370mm |
| Suction Pipe | 3inch | 4inch | 5inch |
Main Features
- Portable and compact: Easy to operate, maintain, transport and assemble - ideal for personal gold mining in small river channels.
- Global popularity: Exported to over 15 countries including Ghana, Philippines, Vietnam, Russia, and North America.
- High efficiency: Equipped with gold chute and carpet for superior recovery rates.
- Quick return on investment: Highly efficient operation with low operating costs.
- Premium construction: Stainless steel framework with high-strength, lightweight plastic floats for durability.
- Customizable design: Tailored solutions based on geological conditions, capacity requirements, and budget.
Certifications
Testing
Packing & Loading
Our Service
Service Commitment
- Long-term after-sale service agreements
- Customized design solutions based on customer requirements
- On-site assembly and testing by our engineers
- Free repairs for quality issues during warranty period
- Comprehensive operation and maintenance training
- High-quality spare parts at competitive prices
- Customer file management for long-term follow-up service
Company Profile
Qingzhou Keda Mining Machine Co., Ltd. specializes in mining equipment including dredgers, sand washing machines, gold panning equipment, and magnetic separators. With over 100 product varieties, we offer customized solutions based on customer requirements and geographical conditions. Our modern facilities include a CAD Aided Design R&D Center and mineral processing laboratory, supported by strategic partnerships with research institutions. Committed to "Customer First, First-Class Quality and First-Class Service," we have earned an excellent reputation in domestic and international markets.
