100' Sand Transportation Work Boat with 60T Max Capacity 2m Maximum Loaded Draft
Price:
$10,000/sets >=1 sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
Keda
Product Description
Transport Carrier Offers Customized Length feet 100' Sand Transportation Barge/Boat
Keda Service Boat - Tug Boat
The multifunction support vessel is designed to complement modern advanced dredgers or other boats. It efficiently handles auxiliary work at dredging sites, enhancing the performance and cost-effectiveness of advanced dredging equipment.
Product Specifications
| No | Description | Specification |
|---|---|---|
| 1 | Type | Dismantle type, can be transport by containers |
| 2 | Main Specifications | |
| Length Overall | 11.8 m | |
| Width Overall | 4.75 m | |
| Middle Pontoon Length | 11.8 m | |
| Middle Pontoon Width | 2.25 m | |
| Middle Pontoon Height | 1.5 m | |
| Side Pontoon Length | 11.8 m | |
| Side Pontoon Width | 1.25 m | |
| Side Pontoon Height | 1.5 m | |
| Unload/Full Load Draft | 0.8 m/1.1 m | |
| Main Engine | Weichai 205kw (280HP) | |
| Generator | 15kw | |
| Gear box | FD300 | |
| Fuel Tank Capacity (For itself) | 500 liters | |
| Weight approx. | 25 tons | |
| Fuel Carrying Capacity Approx. | 15000 liters | |
| 3 | Deck Layout | |
| Hydraulic Deck Crane | Capacity: 4 tons | |
| Towing chock | 1 piece | |
| Fairlead | 1 set | |
| Bollard | 4 pair | |
| Hydraulic Winch | 40Kn, 1 set | |
| Operation room | 1 piece (with Operating Desk, Chair) | |
| Navigation Lights | 1 set | |
| Spot Lights | 2 piece | |
| Rest room | 1set (for 2 person) | |
| Bathroom | 1set | |
| Kitchen room | 1set | |
| 4 | Rudder System | |
| Steering Gear | 1 set | |
| Stream-line rudder | 1 piece | |
| Propeller | 1 piece | |
| 5 | Life Saving Apparatus & Fire Fighting Apparatus | |
| Life Jackets | 4 pieces | |
| Life Buoy | 4 pieces | |
| Fire Extinguisher | 2 pieces | |
| 6 | CCSB Steel Plate | |
| Side Plate | 6 mm | |
| Main Deck | 6 mm | |
| Fore Deck | 8 mm | |
| Bottom Plate | 8 mm | |
| 7 | Loading capacity | 2 x 40ft container |

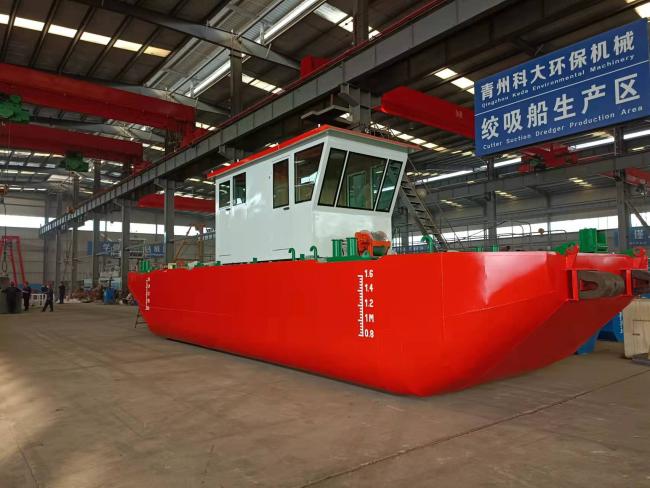

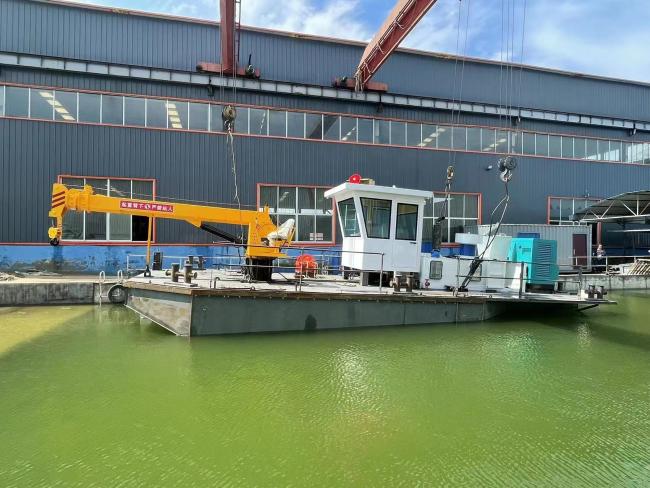

Product Images
Applications
- Pushing and pulling of dredgers and other dredging devices
- Pushing, pulling, loading and unloading of transporting ships
- Mounting and dismounting of mud transporting floating pipes
- Transporting fuel oil and drinking water for dredging sites
- Repair of cutter, bucket wheel, mud pipes and other steel parts
- Anchoring, weighing anchor, removing anchor works of dredgers
- Loading and transporting heavy equipment
- Transportation of crew members and logistics services
Company Profile
Qingzhou Keda Environment Dredging Equipment Co., Ltd. is located in Qingzhou city, Shandong province, China with 22000m² area and more than 100 staff. Our location provides convenient access to Qingdao sea Port, Weifang airport and Qingdao International Airport. We adhere to a client-first service concept and strive to deliver first-class quality and service. Our company has passed IS09001:2008 International Quality System Certification & the General Ship Production Enterprise Technical Condition Evaluation Certificate issued by ZC. Our products have been exported to more than 10 countries including Philippines, Russia, Indonesia, North Korea, Surinam, Congo, Mali, Fiji, Bangladesh, Argentina, and Colombia.
