DSEM840

4.3" Programmable Display

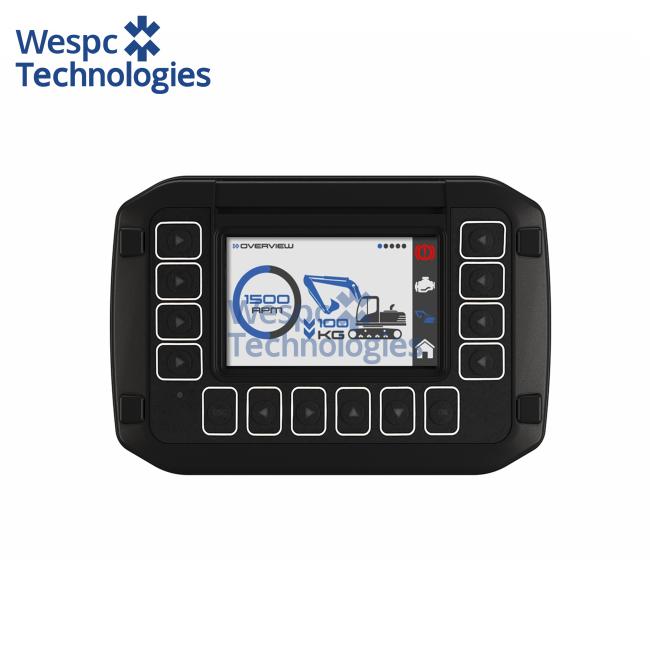

The DSEM840 is a 4.3" programmable display developed for use on vehicles and off-highway machinery. It offers an enhanced 64 MB of SDRAM, 20 MB of CODESYS and  20 MB of User Data memory and an additional Cortex M7 400 MHz clock speed. The display provides high levels of flexibility for multiple application types and is configured using CODESYS 3.5. The M840 can be used as a stand alone product or with additional M-Series products to create extremely powerful applications.

OVERALL SIZE
131 mm x 208 mm x 56 mm (5.15” x 8.2” x 2.2”)
WEIGHT
< 1 kg
CUT-OUT
163 mm x 98 mm (6.42" x 3.86")
PRODUCT VARIANTS
M840-02 - M840 Programmable Display
