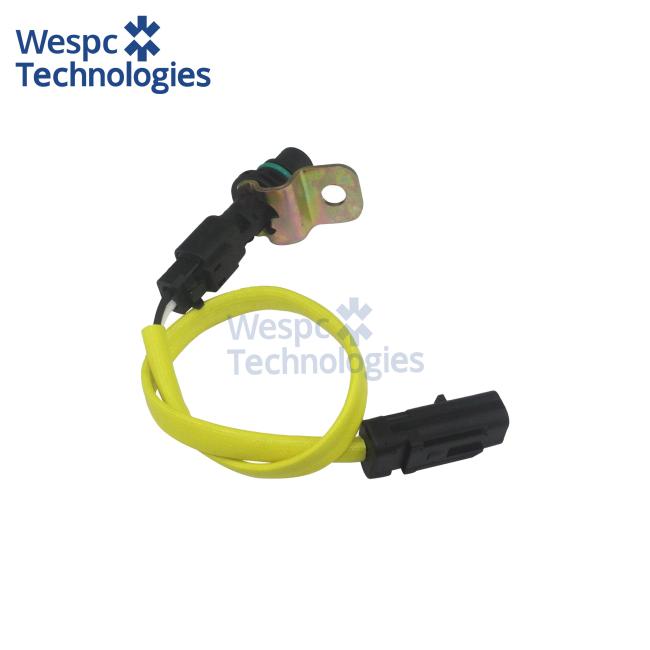

WESPC Crankshaft Speed Sensor KRP1705 For Perkins Engine 2206 2506 2806

Application:

Technical specifications:

Thread interface M16 × 1.5 with 22 mm hex and 37 mm probe reach allow direct mounting into the flywheel housing adjacent to the crankshaft reluctor ring. Output signal is digital Hall-effect, 3-wire, 8–32 Vdc supply, 0–8 kHz frequency range corresponding to 0–4 000 r/min crankshaft speed, with built-in reverse-polarity and load-dump protection to +40 Vdc.

Material & performance features:

Probe body is precision-machined from 1.4305 (AISI 303) stainless steel for superior resistance to engine oil, coolant splash and road salt; the sensing tip is over-moulded in high-temperature PPS polymer rated to 150 °C and houses a rare-earth magnet for stable signal amplitude across the full temperature envelope.

Interchange part numbers:

KRP1705, 10000-17468, 1000017468, 258-4521, 4224834M1, 4222201M1, 2755A013.
