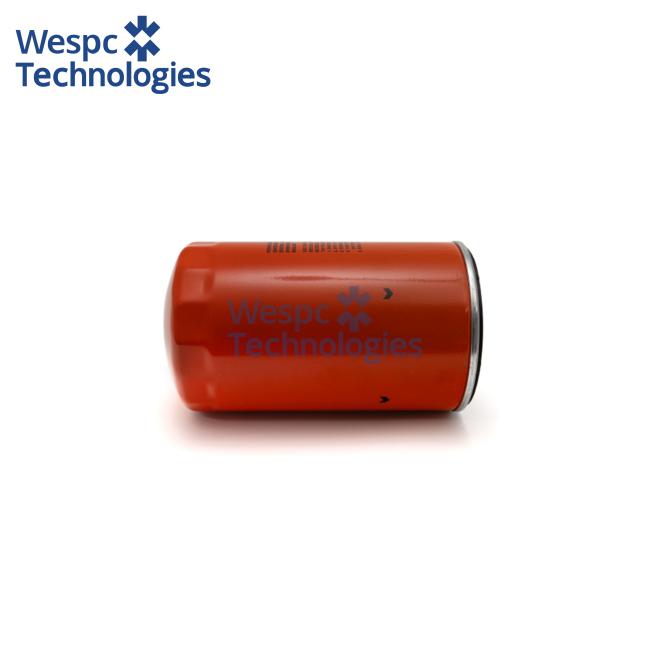

WESPC Filter CV2473 Lubrication Element For 1004 1006 1104 Diesel Engine Series

Application

Filter CV2473 is purpose-engineered for diesel engines including the 1004, 1006, and 1104 series. These engines are commonly used in agricultural tractors, generator sets, and industrial machinery where consistent oil filtration is essential for engine protection and long-term performance. The unit functions as a full-flow spin-on oil filter, designed to remove fine contaminants from engine oil and maintain lubrication system integrity.

Technical specifications

Thread size 3/4-16 UNF, outer diameter 93 mm, overall length 142 mm. The filter includes a bypass valve rated at 1.0 bar and supports vertical mounting. It is compatible with standard filter heads used in mid-range diesel platforms and maintains stable oil flow under varying pressure conditions.

Material & performance features

Constructed with high-efficiency cellulose media and a corrosion-resistant steel shell, the element offers reliable filtration performance and durability under thermal and mechanical stress. The sealing gasket is designed for high-pressure tolerance and leak prevention. The unit is tested for vibration resistance and oil compatibility in demanding operating environments.

Interchange part numbers

CV2473, 2654403, 140517050, 26560145, 26560143
