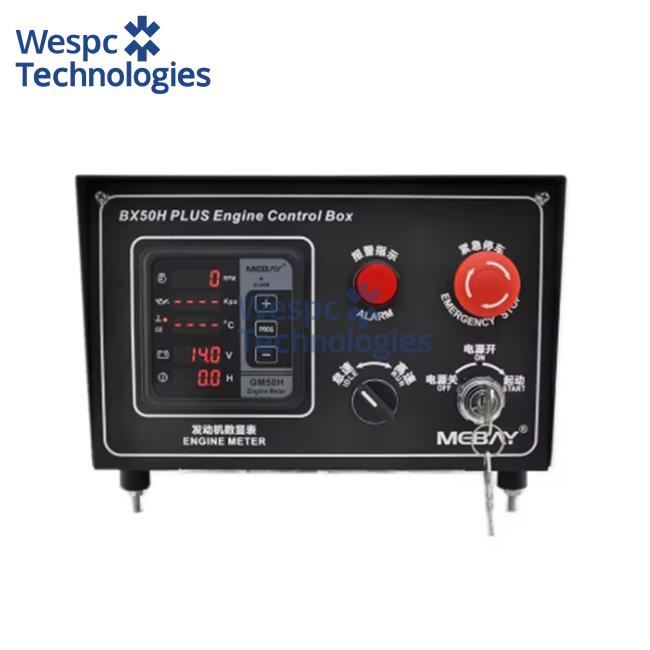

WESPEC Original BX50H PLUS Engine Control Box Engine Protection Emergency Stop
WESPEC Original BX50H PLUS Engine Control Box Engine Protection Emergency Stop
| DC Supply | DC 8～36V |
| Operation Temperature | -20-65℃ |
| Storage Condition | -40-85℃ |
| Dimension |
298*212*178mm
|
| Weight | 2.9kg |
| Sensor Resistance | 0~1000Ω |
Summary
GM50H box is one light and low price-orientated module used for demonstrating engine RPM,water/oil temperature, oil pressure, battery voltage and Hours. The users can adjust and set the parameters by the button on the front face in order to meet the different requests. Besides, it uses the European-style terminals for connection which is more convenient for installation and detachment.
* Various kinds of protections * Input frequency is available to check RPM * Variety of sensor curves' parameters is set inside * Sensor curve can be self-defined by buttons * High-light digital tube can demonstrate the parameters * English and symbols demonstration * The parameters can be set and adjusted by the button on the front face.
