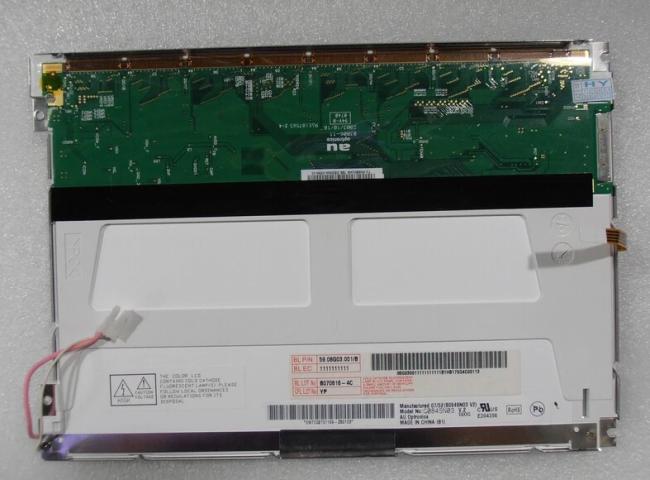

AUO G084SN03 V.2 8.4" Industrial TFT-LCD Display Module
AUO G084SN03 V.2 8.4" Industrial TFT-LCD Module
The AUO G084SN03 V.2 is an 8.4-inch a-Si TFT-LCD module designed for industrial applications, featuring 800×600 SVGA resolution and high brightness around 350 cd/m² (typ.). It uses a TN normally white transmissive panel with LED backlight, offering stable performance and long operational life for industrial control systems.
This model is widely used in HMI, factory automation, CNC equipment, medical devices, and embedded control terminals, where reliability and long-term supply stability are required.
LCD G084SN03 V.2 Specifications:
| Manufacturer | AUO |
| Model No. | G084SN03 V2 |
| Screen Size | 8.4 inch |
| Screen Type | a-Si TFT-LCD, LCM |
| Number of dots | 800(RGB)×600, SVGA, 4:3 |
| Dot Layout | RGB Vertical Stripe |
| Active Area | 170.4×127.8 mm (H×V) |
| Outline Area | 203×142.5×7.8 mm (H×V×D) |
| Weight | 300±10g |
| Luminance | 180 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 65/65/65/45 (Typ.)(CR≥10) |
| Response (ms) | 10/25 (Typ.)(Tr/Td) |
| Good View at | 12 o'clock |
| Display Type | TN, Normally White, Transmissive |
| Dispaly Colors | 262K, 48% NTSC |
| Power Cons. | 3.3W (Typ.) |
| Backlight | 1 pcs CCFL, 20K hrs, No Driver |
| Refresh Rate | 60Hz |
| Touchscreen | 4-wire Resistive Touch |
| Signal Type | LVDS (1 ch, 6-bit), 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C |
Key Features of AUO G084SN03 V.2
- 8.4-inch SVGA 800×600 resolution: Stable and widely used industrial format
- 350 cd/m² brightness: Good visibility for indoor industrial environments
- LED backlight with long lifetime: Low maintenance and energy efficient
- LVDS interface: Strong anti-interference and stable signal transmission
- Wide temperature support: Suitable for harsh industrial environments
- Industrial reliability design: Long lifecycle for OEM systems
Applications
- Industrial HMI (Human Machine Interface)
- CNC machines and automation systems
- Medical monitoring equipment (non-critical use)
- Industrial control panels
- Test and measurement devices
- Embedded industrial terminals
FAQ
Is G084SN03 V.2 a touch screen?
No, standard version is non-touch (touch can be added externally).
What interface does it use?
LVDS interface, 20-pin connector.
Is it still in production?
It is an industrial long-lifecycle model, but availability depends on AUO supply cycle.
Can it replace older 8.4” SVGA panels?
Yes, it is commonly used as a direct replacement in many legacy systems.
