Nitrogen Protection Carbonization Furnace For SiC And Graphite Processing
Price:
$80000-100000
MOQ:
1 Set
Delivery Time:
90 Days
Brand:
Nuotian
Product Description
1600℃ Vacuum Carbonization Furnace Resistance Heating for SiC & Graphite Processing
Description:
- This 1600℃ batch resistance vacuum carbonization furnace delivers excellent temp consistency via electric resistance heating + airtight vacuum chamber, securing optimal material processing.
- With a sturdy framework & intelligent temp control (regulate heating speeds/holding periods), it ensures uniform workpiece heating. It handles SiC powder, graphite, radiation-proof materials, etc.—fits large/small-batch production.
- User-friendly panel + safety safeguards (over-temp warning, leak monitor) work for lab R&D & industry.
![]()
Application:
- Ceramic Materials: Sintering of boron carbide plates, silicon carbide, zirconia, sapphire, and other advanced ceramic components.
- Carbon & Graphite Materials:Sintering of carbon composite materils,carbon materials and graphite.
- Hard Alloys & Metals: Processing of tungsten carbide, carbide alloys, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).
- Special Materials: Sintering of gemstone, diamond, rhenium materials, boron nitrogen, vanadium carbide powder, and composite metal powders.
![]()
Specification:
|
Carbonization Furnace -- Technology Parameter |
||||||
|
|
Lab usage |
Production usage |
||||
|
NTI-THL-54W |
NTI-THL-98W |
NTI-THL-300w |
NTI-THL-400W |
NTI-THL-720W |
||
|
Working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
600×600×2000 |
|
Heating type |
/ |
Resistance heating |
||||
|
Control type |
/ |
SCR control |
||||
|
HT zone capacity |
L |
54 |
98 |
300 |
400 |
720 |
|
Loading weight |
g |
HT zone capacity ×density(g/cm³)×1000 Remark:1L=1000cm³ |
||||
|
IF power |
Kw |
50 |
100 |
120 |
135 |
185 |
|
Ultimate vacuum |
Pa |
20 |
||||
|
Max.working temperature |
℃ |
1600 |
1600 |
1600 |
1600 |
1600 |
|
Usual working temperature |
℃ |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Temperature uniformity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
|
Working environment |
/ |
Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure) |
||||

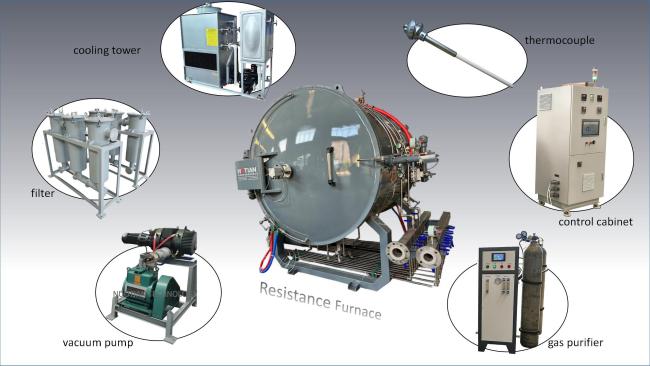

Furnace Configuration:
- Control System: Optional 1-to-1 (one control cabinet for one furnace), equipped with Delta PLC for stable, intelligent operation.
Key standard & optional components:
- Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
- Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
- Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
- Temperature Measurement: Equipped with Tungsten-rhenium thermocouple for real-time, accurate high-temperature monitoring (supports precise temperature control up to 1600℃).
- Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.
Feature Advantages:
- High-Temperature Capability: Reaches up to 1600℃.
- Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
- Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
- Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
- Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.
![]()
After-sales Service:
We provide comprehensive after-sales support to ensure your equipment operates smoothly:
- Warranty: 1-year warranty for core electrical components against manufacturing defects.
- Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
- Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
