Corrosion Resistance Ship Side Scuttles 200mm-400mm Size GRADE B

Price Negotiable

Price: NEGOTIABLE

MOQ: 5

Delivery Time: 25 WORKING DAYS

Brand: OEM

Product Description

															mm

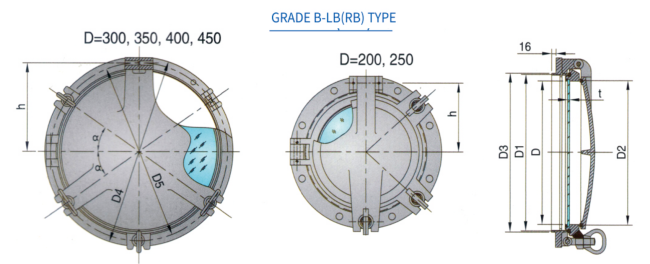

GRADE B-LB(RB) TYPE SIDE SCUTTLES FOR SHIPS
TYPE		SIZE OF LIGHT D	D1	D2	D3	D4	D5	h	t	α	QTY.OF CLIPS		BOLT		SIZE OF B.H. OPENING
											QTY.OF CLIPS		BOLT
											DEADLIGHT	GLASS HOLDER	WHORL	QTY


B	LB RB	200	245	204	250	350	310	155	8	45°	2	3	M16	8	253
		250	295	254	305	400	364	182	8	48°	2	3	M16	8	308
		300	350	304	360	450	414	207	10	31°	3	3	M16	12	363
		350	400	354	410	500	464	232	12	32°	3	3	M16	12	413
		400	450	404	460	550	514	257	12	31°	3	3	M18	12	463
		450	500	454	510	600	564	282	15	31°	3	3	M20	12	513

															mm
GRADE B-SB TYPE SIDE SCUTTLES FOR SHIPS
TYPE		SIZE OF LIGHT D	D1	D2	D3	D4	D5	h	t	α	QTY.OF CLIPS		BOLT		SIZE OF B.H. OPENING
TYPE		SIZE OF LIGHT D	D1	D2	D3	D4	D5	h	t	α	DEADLIGHT	GLASS HOLDER	WHORL	QTY	SIZE OF B.H. OPENING
B	SB	200	245	204	250	350	310	155	8	45°	2	3	M16	8	253
		250	295	254	305	400	364	182	8	42°	2	3	M16	8	308
		300	350	304	360	450	414	207	10	31°	3	3	M16	12	363
		350	400	354	410	500	464	232	12	32°	3	3	M16	12	413
		400	450	404	460	550	514	257	12	31°	3	3	M18	12	463
		450	500	454	510	600	564	282	15	31°	3	3	M20	12	513

														mm
GRADE B-NB TYPE SIDE SCUTTLES FOR SHIPS
TYPE		SIZE OF LIGHT D	D2	D3	D4	D5	h	t	α	QTY.OF.CLIPS		BOLT		SIZE OF B.H. OPENING
TYPE		SIZE OF LIGHT D	D2	D3	D4	D5	h	t	α	DEADLIGHT	GLASS HOLDER	WHORL	QTY	SIZE OF B.H. OPENING
B	NB	200	204	250	350	310	155	8	---	2	---	M16	8	253
		250	254	305	400	364	182	8	---	2	---	M16	8	308
		300	304	360	450	414	207	10	31°	3	---	M16	12	363
		350	354	410	500	464	232	12	32°	3	---	M16	12	413
		400	404	460	550	514	257	12	31°	3	---	M18	12	463
		450	454	510	600	564	282	15	31°	3	---	M20	12	513

												mm

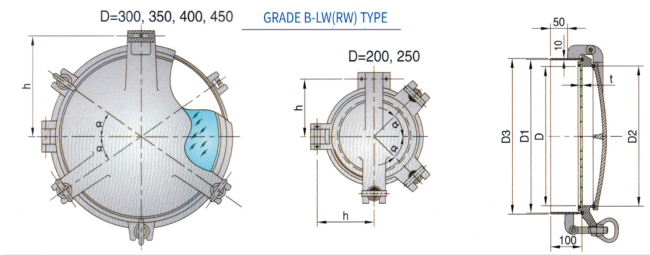

GRADE B-LW(RW) TYPE SIDE SCUTTLES FOR SHIPS
TYPE		SIZE OF LIGHT D	D1	D2	D3	h	t	α	gmax	QTY.OF CLIPS		SIZE OF B.H. OPENING
TYPE		SIZE OF LIGHT D	D1	D2	D3	h	t	α	gmax	DEADLIGHT	GLASS HOLDER
B	LW RW	200	245	204	250	155	8	45°	50	2	3	253
		250	295	254	305	182	8	48°	47.5	2	3	308
		300	350	304	360	207	10	31°	45	3	3	363
		350	400	354	410	232	12	32°	45	3	3	413
		400	450	404	460	257	12	31°	45	3	3	463
		450	500	454	510	282	15	31°	45	3	4	513

												mm

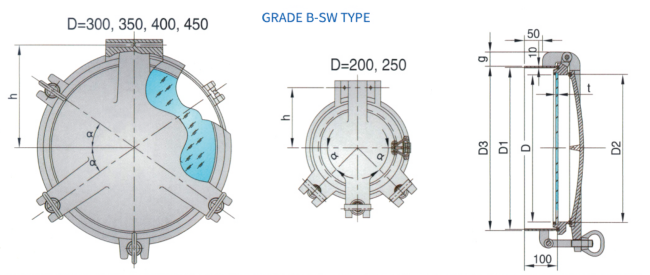

GRADE B-SW TYPE SIDE SCUTTLES FOR SHIPS
TYPE		SIZE OF LIGHT D	D1	D2	D3	h	t	α	gmax	QUT.OF CLIPS		SIZE OF B.H.OPENING
										DEADLIGHT	GLASS HOLDER
B	SW	200	245	204	250	155	8	45°	50	2	3	253
		250	295	254	305	182	8	48°	47.5	2	3	308
		300	350	304	360	207	10	31°	45	3	3	363
		350	400	354	410	232	12	32°	45	3	3	413
		400	450	404	460	257	12	31°	45	3	3	463
		450	500	454	510	282	15	31°	45	3	4	513

												mm

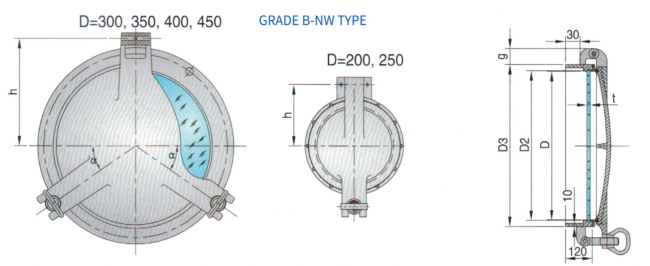

GRADE B-NW TYPE SIDE SCUTTLES FOR SHIPS
TYPE		SIZE OF LIGHT D	D2	D3	h	t	α	gmax	QUT.OF CLIPS		SIZE OF B.H.OPENING
									DEADLIGHT	GLASS HOLDER
B	NW	200	204	250	155	8	一	50	2	一	253
		250	254	305	182	8	一	47.5	2	一	308
		300	304	360	207	10	31°	45	3	一	363
		350	354	410	232	12	32°	45	3	一	413
		400	404	460	257	12	31°	45	3	一	463
		450	454	510	282	15	31°	45	3	一	513
