Single Leaf Boat Console Door TYPE AF/AY Boat Compartment Doors

Price Negotiable

Price: NEGOTIABLE

MOQ: 5

Delivery Time: 25 WORKING DAYS

Brand: OEM

Product Description

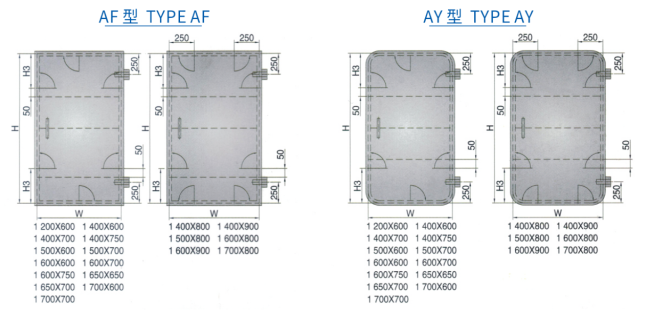

TYPE AF/AY MARINE WEATHERTIGHT SINGLE-LEAF STEEL DOOR
Type A door frame: Suitable for single-layer or structures with significant thickness variations, featuring 3 or 4 reverse-fixed frames (counterframes), it is highly installable and commonly found in residential areas or general cabins.
SIZE OF DOORWAY HXW	SIZE OF DOOR H1XW1	SIZE OF B.H.OPENING H2XW2		THICK.OF DOORLEAF		STIFFENER					QTY.AND INSTALL. OF DOGS		WEIGHT KG
		SIZE OF B.H.OPENING H2XW2		SHIP LENGTH(m)							QTY.AND INSTALL. OF DOGS		WEIGHT KG
		AF	AY	≤80	>80	≤80	80~120	120~150150~210210~300			H3	QTY	6mm	8mm
1200×600	1255×655	1300×700 R80	1300×700 R150	6	——	75×6	——	一		一	350	6	123.80	——
1400×600	1455×655	1500×700 R80	1500×700 R150	6	8	——	65×9	65×9	75×9	75×9	380	6	152.33	176.56
1400×700	1455×755	1500×800 R80	1500×800 R150	6	8	——	75×9	75×12	75×12	90×12	380	6	158.26	180.00
1400×750	1455×805	1500×850 R80	1500×850 R150	6	8	——	75×9	75×12	90×12	90×12	380	6	162.24	192.33
1400×800	1455×855	1500×900 R80	1500×900 R150	——	8	——	90×12	90×12	90×12	90×12	380	6	——	204.66
1400×900	1455×955	1500×1000 R80	1500×1000 R150	——	8	——	90×9	90×12	100×12	100×12	380	6	——	222.47
1500×600	1555×655	1600×700 R80	1600×700 R150	——	8	——	75×6	90×12	75×12	90×12	410	6	——	164.43
1500×700	1555×755	1600×800 R80	1600×800 R150	——	8	——	75×12	75×9	75×12	90×12	410	6	——	188.62
1500×800	1555×855	1600×900 R80	1600×900 R150	——	8	——	90×12	90×12	90×12	90×12	410	6	——	217.80
1600×600	1655×655	1700×700 R80	1700×700 R150	——	8	——	65×9	75×9	75×12	75×12	410	6	——	188.14
1600×700	1655×755	1700×800 R80	1700×800 R150	——	8	——	75×12	90×12	90×12	90×12	410	6	——	217.14
1600×750	1655×805	1700×850 R80	1700×850 R150	——	8	——	75×12	90×9	90×12	90×12	410	6	——	216.48
1600×800	1655×855	1700×900 R80	1700×900 R150	——	8	——	90×12	100×12	100×12	90×12	410	6	——	219.14
1600×900	1655×955	1700×1000 R80	1700×1000 R150	——	8	——	90×12	100×12	125×9	125×9	410	6	——	242.57
1650×650	1705×705	1750×750 R80	1750×750 R150	——	8	——	75×6	90×6	90×12	90×12	410	6	——	186.59
1650×700	1705×755	1750×800 R80	1750×800 R150	——	8	——	75×12	90×12	90×12	90×12	410	6	——	200.59
1700×600	1755×655	1800×700 R80	1800×700 R150	——	8	——	75×6	90×9	90×12	90×9	410	6	——	179.59
1700×700	1755×755	1800×800 R80	1800×800 R150	——	8	——	75×12	90×12	125×9	125×9	410	6	——	205.25
1700×800	1755×855	1800×900 R80	1800×900 R150	——	8	——	90×12	100×12	125×9	125×9	410	6	——	230.90
Example of Marking: The through-hole size is 1600X600,the door panel thickness is 8mm,and the reinforcing rib is (65X9)mm.It is an A-grade square-corner Weathertight single-leaf steel door(right outward opening) WEATHERTIGHT STEEL DOOR AF1600X600-8-65X9-5.1GB/T 3477-2023
