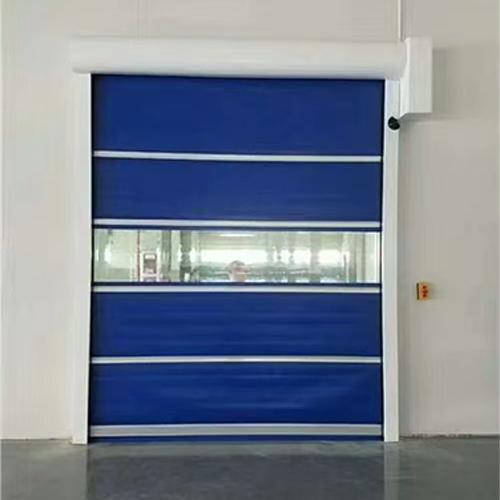

Hygienic Industrial Speed Doors with Safety Protection System For Food Processing
Industrial High Speed Door With Stable Operation For Food Processing – Fast & Hygienic Doors
The Industrial High Speed Door for food processing facilities is designed to meet the strict hygiene, safety, and efficiency requirements of modern food factories. It provides fast opening and closing to minimize air exchange, prevents dust, insects, and contamination, and maintains a stable working environment. The smooth PVC or stainless steel curtain surface allows easy cleaning and sanitation, while the durable structure supports high-frequency operation in busy production lines, ensuring consistent product quality and workflow efficiency.
Product Specifications:
| Parameter | Description |
|---|---|
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Max Door Size | Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed | Opening Speed: 0.8-2.0 m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material | 0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power | 0.75-1.5KW (depending on size & speed) |
| Temperature Range | -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance | High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing |
| Wind Resistance | Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function | In case of power failure or malfunction, the door can be manually opened with a wrench. |
| Power Requirements | 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards. |
| Insulation Protection | IP54 rating, providing water and dust protection, suitable for harsh environments. |
| Switching Methods | Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc. |
Product Features
- High-Speed & Stable Operation
- Excellent Sealing Performance
- Hygienic & Easy-to-Clean Design
- Advanced Control & Automation Options
Product Advantages
- Enhances Food Safety & Hygiene
- Reduces Energy Loss
- Improves Workflow Efficiency
- Durable & Low Maintenance
Technical Highlights (Key Parameters)
-
Max Door Size: Width 1000–6000 mm | Height 1500–6000 mm
-
Curtain Material: PVC, 0.8/1.2/1.5/2.0 mm thickness
-
Frame Material: Galvanized steel (standard), Stainless steel (optional)
-
Wind Resistance: Class 6 (reinforced up to Class 8)
-
Power Supply: 220V / 50–60Hz, IP54 control box
-
Safety System: Infrared photoelectric sensors + bottom safety edge
-
Manual Operation: Emergency manual opening in case of power failure
Applications
-
Food processing workshops
-
Packaging and preparation areas
-
Beverage and dairy production lines
-
Cold storage and temperature-controlled zones
-
Hygienic production environments with frequent traffic
FAQ
What is an Industrial High Speed Door?
An industrial high speed door is a fast-operating door designed for industrial environments to improve workflow efficiency, hygiene control, and environmental separation.
Can it withstand frequent operation?
Yes. The servo motor system and closed-loop control allow stable performance for 1,000+ operating cycles per day, making it ideal for high-traffic areas.
Is it suitable for clean or hygienic areas?
Yes. The smooth curtain surface, tight sealing system, and easy-to-clean materials help reduce dust accumulation and contamination risks.
What materials and configurations are available?
Available materials include PVC, stainless steel, and galvanized steel. Insulated curtains, transparent windows, and multiple activation methods are optional.
|
|
|
