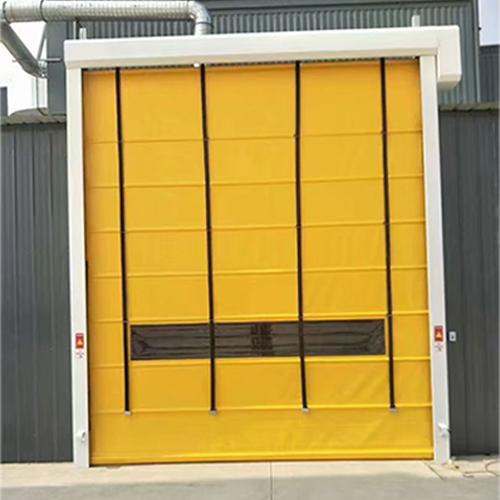

Curtain Thick 0.8mm–1.2mm High Speed Stacking Door For Electronics Workshops
0.8–1.2 Mm Thick Curtain High-speed Stacking Doors For Electronics Workshops
The High Speed Stacking Door for electronics workshops is engineered to maintain clean environments, ensure safety, and improve workflow efficiency.
In electronics production, dust, airflow, and static control are critical. This door combines a fast-opening insulated PVC curtain, robust servo-controlled motor system, and advanced safety features to support high-frequency operation while maintaining internal environmental stability.
Note: Suitable for ambient-temperature areas only. Not recommended for cold storage or sub-zero conditions.
Product Parameters
| Parameter | Description |
|---|---|
| Maximum Dimensions | Door width: 1000mm–12000mm, Door height: 1500mm–12000mm |
| Operating Speed | Opening speed: 0.6–1.2 m/s (adjustable) Closing speed: 0.6 m/s (adjustable) |
| Door Curtain Material | 0.8–1.2 mm thick curtain; available colors: Blue, Orange, Gray |
| Frame Material | Standard track frame: Galvanized steel with powder coating Optional upgrade: Stainless steel |
| Sealing Performance | High-quality brush sealing on tracks, bottom equipped with EPDM sealing structure |
| Wind Resistance | Up to Class 6 wind, can be reinforced to Class 8 |
| Manual Operation | In case of power failure or malfunction, the door can be manually opened using a standard wrench |
| Power Supply Requirements | Three-phase 380V/50Hz, IP54 control box, compliant with national electrical safety standards |
| Insulation Protection | IP54, waterproof and dustproof for harsh environments |
| Opening/Closing Control | Standard one-button operation with emergency stop; optional control methods: Radar sensor, loop detector, pull cord switch, remote control |
| Pre-reserved Ports | Electrical system pre-reserved for: infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock; highly compatible |
Control System (Servo System)
- Uses dedicated servo system with DSP chip core
- System sets door opening height based on incremental encoder signals from the motor and limit switch signals
- LED display shows fault codes
- Direction protection: controller reports error if motor wiring is reversed; door remains stationary
- Torque loop, position loop, and speed loop fully closed
- Motor can stop at exact position without using an electromagnetic brake
Product Advantages
Maintain Clean Production Areas
-
Smooth PVC curtain reduces dust accumulation
-
Tight sealing minimizes airflow contamination
High Workflow Efficiency
-
Fast opening and closing for uninterrupted internal traffic
-
Supports high-frequency use for busy electronics production lines
Safety & Reliability
-
Infrared sensors and bottom soft edge prevent accidents
-
Servo-controlled system ensures precise stopping and rebound
Energy Efficiency
-
EPDM bottom seal and track brush reduce air exchange
-
Helps maintain temperature and energy savings
Applications
The High Speed Stacking Door is ideal for electronics workshops:
-
Internal passages between assembly, testing, and packaging zones
-
High-traffic corridors for personnel and material handling
-
Ambient-temperature sections requiring dust and airflow control
-
Areas needing fast, safe, and frequent door operation
FAQ
Can this door be used in cleanrooms?
Yes, it is suitable for ambient-temperature controlled environments, but not for ISO-classified cleanrooms requiring sub-zero operation.
Is it safe for frequent operation?
Yes. The servo motor system supports thousands of cycles per day, ideal for busy electronics workshops.
Can the door size and frame material be customized?
Yes. Width, height, curtain thickness, and frame material (galvanized steel or stainless steel) can be customized.
|
|
|
