Custom 130000N 24V DC Linear Actuator IEC62817 Certification IP65 Linear Actuator
Price:
$240-280 / piece
MOQ:
1
Delivery Time:
Negotiable
Brand:
TOMUU
Product Description
Description:

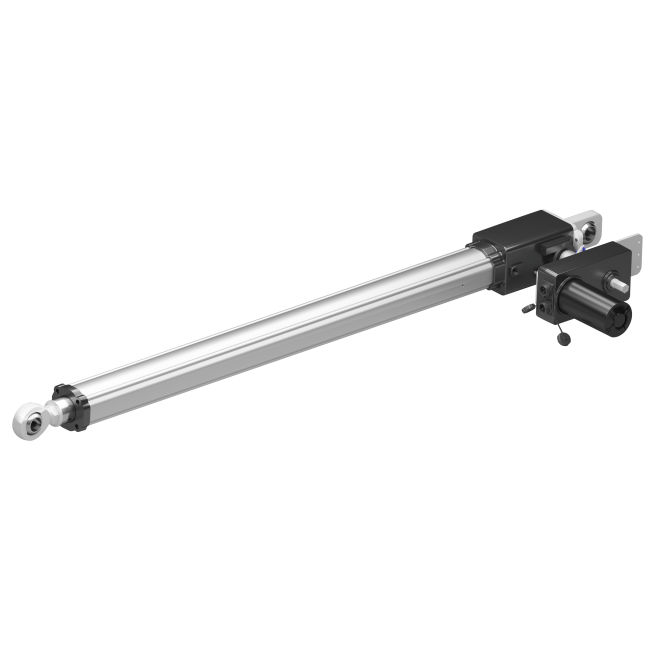

Optimized for large‑scale solar tracking systems, the U17B 24V DC linear actuator adopts 1 motor driving 4 actuators, significantly reducing motor usage, energy consumption, and initial investment. It provides 20,800N push/pull load and 130,000N static load, with excellent load‑bearing and anti‑wind capabilities. Motor replacement is simple and efficient, suitable for unattended solar farms. IP65 protection and IEC62817 certification ensure reliable operation in harsh outdoor conditions. Components pass 100,000 cycles test, with speed 0.7/0.5mm/s, 10% duty cycle, and temperature ‑25℃~+65℃, ensuring long service life.
Parameter:
|
Parameter
|
Specification
|
|---|---|
|
Voltage
|
12V DC / 24V DC
|
|
Max Load
|
20,000N
|
|
Speed
|
0.5-0.75mm/s
|
|
Duty Cycle
|
10%
|
|
Protection Class
|
IP65
|
|
Noise Level
|
≤60dB
|
|
Stroke
|
100-800mm
|
|
Material
|
Aluminium Alloy
|
Dimension:
Advantage:
Designed for large‑scale solar farms; 1‑motor‑4‑actuators cost‑effective; 130,000N static load windproof; 20,800N strong thrust; easy motor maintenance; IP65 protection; IEC62817 standard; 100,000 cycles durability; precise speed control; stable long‑term operation.
