Product Description:

The belt is the core, flexible backbone of a belt-type bucket elevator. It serves as the continuous loop that bears the entire load—both the weight of the attached buckets and the bulk material being conveyed vertically. Unlike a chain drive, a belt system offers a unique combination of quiet operation, smooth movement, and high-speed capability.

Key Functions:

• Load-Bearing Structure: It must withstand the constant tensile forces from the loaded buckets and the material weight.
• Traction Element: It transmits the driving force from the head pulley (drive pulley) to the entire assembly, pulling the buckets through the elevator's casing.

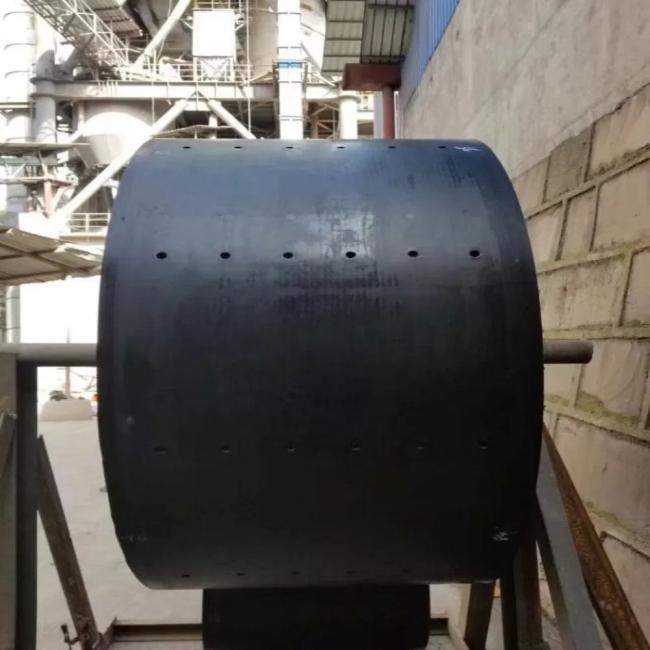

• Bucket Mounting Surface: Buckets are securely bolted or attached to the belt at precise intervals.

Common Belt Types:

• Fabric Ply Belts (Multi-Ply): Made with multiple layers (ply) of fabric (like polyester or nylon) bonded with rubber. They offer good flexibility and impact resistance for general-duty applications.

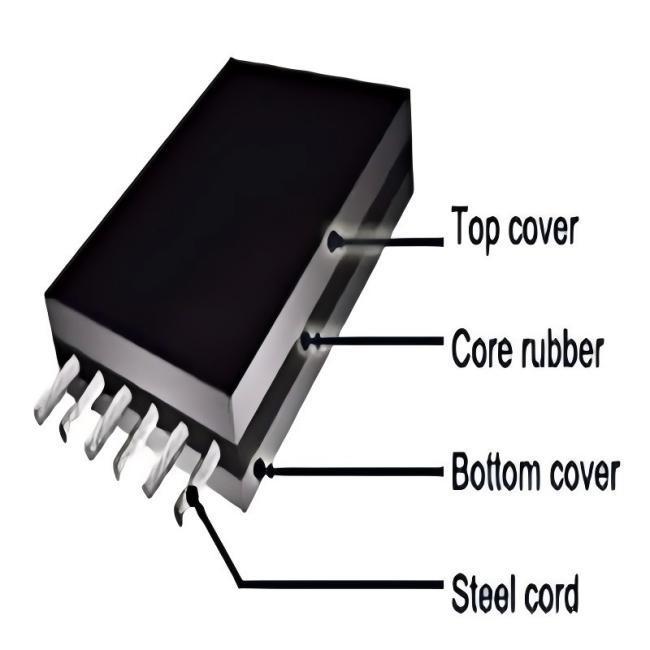

• Steel Cord Belts: Incorporate a single layer of embedded steel cables for exceptional tensile strength with minimal stretch. This is the preferred choice for high-capacity, long-center, and heavy-duty elevators (e.g., in grain, cement, or mining).
• Solid Woven Belts: Made from woven fabric impregnated with PVC or other compounds. They are resistant to fire, moisture, and abrasion in certain environments.

Features:

High Tensile Strength: To handle the load without breaking.
Low Elongation (Stretch): Especially important for steel cord belts to maintain proper tension and bucket spacing.
Abrasion & Tear Resistance: To withstand wear from material spillage and friction.
Oil & Chemical Resistance: Depending on the material being handled (e.g., certain fertilizers or industrial products).
Pulley Grip (Friction): The top cover must provide sufficient friction with the drive pulley to prevent slippage.
Flex Fatigue Resistance: It must endure constant bending around the head and tail pulleys without cracking.

Technical Parameters:

Remark:

1. The above data is according to the GB/T5753-2008 Standard.
2. We also can produce the belt in according to customer’s request standard.

Applications:

MWIN Steel Cord Conveyor Belts are the preferred choice for:

• Mining: Coal, iron ore, copper, bauxite, and aggregates.
• Cement & Building Materials: Clinker, limestone, gypsum, and raw materials.

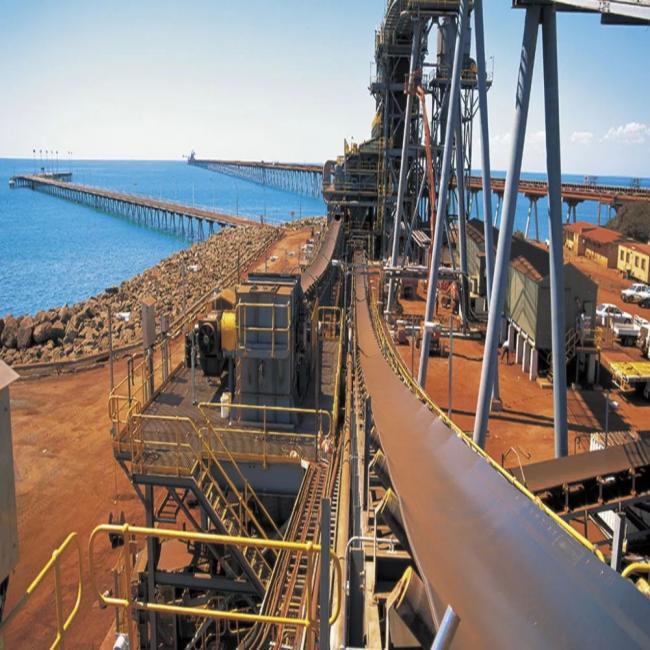

• Ports & Terminals: Long‑distance ship loading/unloading of bulk cargo.
• Power Plants: Coal and ash handling.
• Metallurgy: Sinter, ore, and slag conveyance.
• Quarries & Aggregates: High‑abrasion stone and gravel transport.

Packing and Shipping:

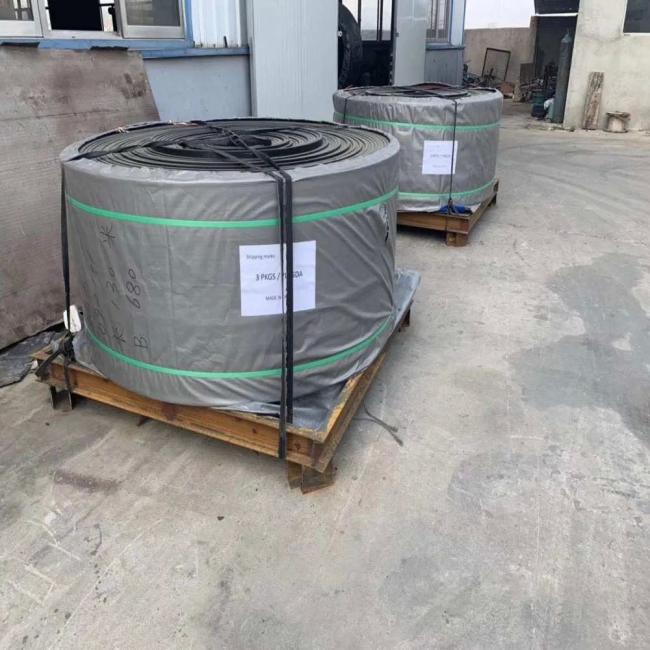

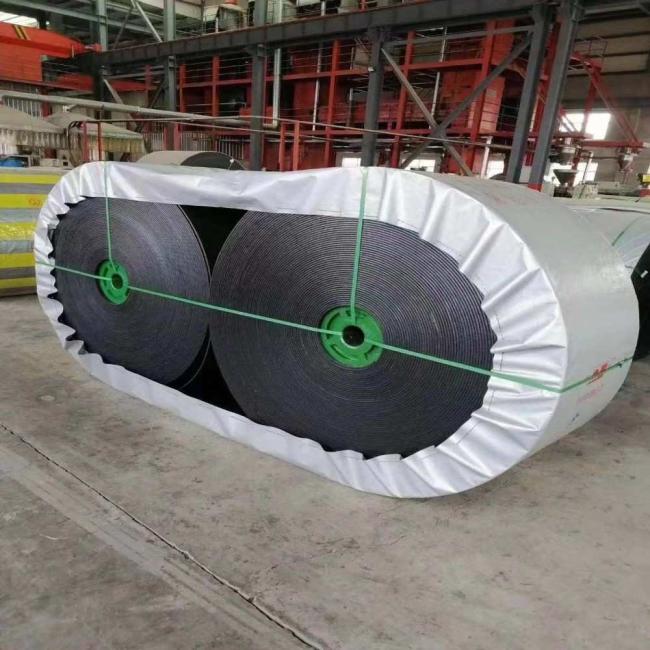

Product Packaging: The Bucket Elevator Conveyor Belt is carefully packaged to ensure safe delivery and protection during transit. Each unit is wrapped with durable plastic film to prevent moisture and dust contamination. The conveyor belt is then secured in a sturdy wooden crate or reinforced cardboard box, depending on the order size and shipping requirements. Additional padding materials such as foam inserts or bubble wrap are used to safeguard delicate components and prevent damage from shocks or vibrations. All packaging materials are labeled clearly with handling instructions and product information to facilitate easy identification and safe handling.
Shipping: We offer flexible shipping options for the Bucket Elevator Conveyor Belt to meet customer needs worldwide. Shipments can be made via sea freight, air freight, or land transportation depending on the destination and urgency. Our logistics team coordinates closely with trusted carriers to ensure timely and secure delivery. Prior to dispatch, all products undergo thorough inspection and quality checks. Tracking information is provided to customers to monitor their shipment status from the warehouse to the final delivery point. Proper customs documentation and compliance with international shipping regulations are handled to avoid delays at borders.
