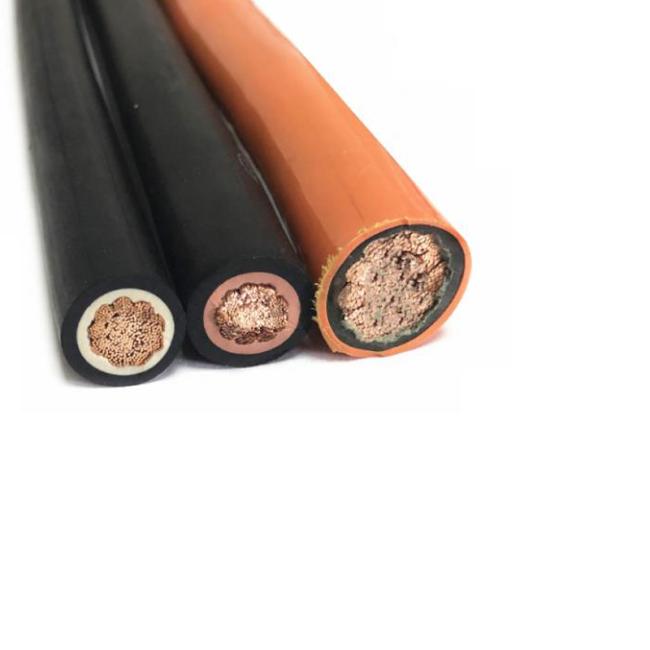

1/0 2/0 AWG 50mm 95mm Welding Cable Rubber Flexible Cable

Price Negotiable

Price: 0.1-5

MOQ: 100

Delivery Time: 10 Days

Brand: Minfeng

Product Description

^{Silicone Rubber Cable}
^{Executive standard}	^{GB12666-90 for flame retardant and fire resistance test}
^{AC rated voltage}	^{U0/U 0.6/1KV；} ^{U0/U 450/750V( Silicone Rubber Control Cable )}
^{Maximum working temperature}	^180℃
^{Minimum ambient temperature}	^{silicone rubber sheath:} ^{fixed laying -60 ℃, non-fixed laying -20 ℃}
^{Cable installation and laying temperature}	^{not lower than -25℃} ^{not lower than -20℃( Silicone Rubber Control Cable )}
^{Allowable bending radius of the cable}	^{1. the minimum cable is 10 times the outer diameter of the cable} ^{2. Unarmoured cable min. 6 times the outer diameter of the cable( Silicone Rubber Control Cable )}
^Features	^{heat-resistant radiation, cold resistance, high temperature resistance, voltage resistance, acid and alkali resistance and corrosive gas, waterproof, etc.}
^Advantages	^{1. It has good thermal stability and stable electrical performance in high temperature, high and low temperature, high cold and corrosive environments.} ^{2. Soft structure, convenient laying, outstanding anti-aging performance and long service life.}
^Application	^{1. Used for power transmission lines for fixed laying or connecting cables for mobile electrical appliances with AC rated voltage of 0.6/1KV and below.} ^{2. Silicone rubber control cable is suitable for connecting wire or signal transmission of electrical instruments for mobile or fixed laying with AC rated voltage of 450/750V and below.} ^{3. Widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing and other industries.}

^{Silicone Rubber Power Cable}		^{Silicone Rubber Control Cable}
^Model	^Name	^Model	^Name
^YGC	^{Silicone rubber insulated sheathed power cable}	^KGG	^{Silicone Rubber Insulated and Sheathed Control Cables}
^YGCR	^{Silicone rubber insulated sheathed mobile power flexible cable}	^KGGR	^{Silicone Rubber Insulated and Sheathed Control Flexible Cable}
^YGCP	^{Silicone rubber insulated sheathed copper braided shielded power cable}	^KGGP	^{Silicone rubber insulated and sheathed copper wire braided shielded control cable}
^YGC22	^{Silicone rubber insulated sheathed steel tape armored power cable}	^KGGRP	^{Silicone rubber insulated and sheathed copper wire braided shielded control flexible cable}
^JGG	^{Silicone Rubber Insulation Sheath Installation Wire}	^KGGRP1	^{Silicone rubber insulated and sheathed tinned braided shielded control flexible cable}
^JGGR	^{Silicone rubber insulating sheath mobile installation cord}	^KFG	^{Fluoroplastic insulated and silicone rubber sheathed control cable}
^JGGP	^{Silicone rubber insulated sheathed copper braided shielded installation wire}	_{Note: ZR is added before the model of flame retardant silicone rubber cable, and the copper wire in the conductor core can be tinned}
^JHXG	^{Silicone rubber insulated motor lead wire}

_Application

JG, JHXG, silicone rubber insulated lead wires, used for F class and H class insulated motor and electrical lead wires of 1140V
and below JGG, silicone rubber insulated silicone rubber sheathed installation wire, used for lead wires for insulated motors and
electrical appliances between 6000V-10000V

_{mm2 nominal cross section}	_{Insulation Nominal Diameter} _mm				_{Finished weight kg / km}				_{At 20 ℃ conductor resistance of less than} _{Ω / km}
	_JG,JHXG		_JGG		_JG,JHXG		_JGG
	_500V	_1000V	_6000V	_10000V	_500V	_1000V	_6000V	_10000V
0.75	3.2	3.6	5.8	6.8	15.4	18.1	38.8	51.4	26.7
1	3.3	3.7	5.9	6.9	18.3	21.1	42.6	55.5	20
1.5	3.6	4	6.2	7.6	23.6	26.7	49.4	68.9	13.7
2	-	-	6.9	7.9	-	-	62.1	77	9.48
2.5	4.1	4.5	7.3	8.5	33.7	37.2	70.3	89.3	8.21
4	5	5.4	8.2	9	53.6	57.8	96.3	110.2	5.09
6	6	64	9.6	10.4	76.1	81.1	132.8	149	3.39
10	7.6	7.8	10.8	11.6	130.6	133.7	190.2	208.4	1.95
16	8.7	9.1	12.3	13.1	183.6	191.1	260.3	280.9	1.24
25	10.6	11	13.8	14.6	279.4	288.1	358.1	381	0.795
35	12.8	13.2	16	16.8	391.7	402.2	485.1	511.7	0.565
50	15.1	15.5	17.9	18.7	551.8	564.1	645	674.5	0.393
70	16.5	16.9	19.7	20.5	749.9	763.4	867	899.5	0.277
95	18.9	19.3	21.7	22.5	982.6	998	1097.5	1133.2	0.21
120	20.8	21.2	24.4	26.4	1232.5	1249.5	1396.9	1499.6	0.164
150	23.7	24.1	27.3	293	1532.8	1552.1	1718	1832.6	0.132
185	25.1	25.5	29.3	31.3	1842.1	1862.6	2073	2195.5	0.108
240	28.5	28.9	32.9	34.9	2435.2	2435.2	2685.1	2822.1	0.0871

^{GENERAL RUBBER SHEATHED FLEXIBLE CABLE}
Rated Voltage ( U0/U )	^{300/500V; 450/750V;}
NO.of Core	^{1, 2, 3, 4, 5, 3+1}
Nominal Sectional Area ^{( mm2 )}	^0.3~0.5,0.75~6, 1.5~6, 1.5~400, 2, 3, 4, 5, ^1~95,1~150, 1~25, 1.5~150.
Max.Permissible operating temperature of cable conductor	^60℃,
Ambient temperature ofinstallation	^{YC installation:} ^{YC type: -40℃ ;} ^{YCW type:>-15℃;}
Cable bending radius	^{not less than 5 times the outer diameter of the cable;} ^{"w" derivative cable has capacities of weatherresistance and oil-resistance and be suitable foe the occasions ofoutdoors or oil contact.}
^Application	^{The product wil be applied to the drive devices, household electric instruments, all kinds of portable electrical equipments and electromotive tools at A.C rated voltage U /U up to and including 450/750V.}

_NAME	_MODEL	_USAGE	_FEATURE
_{Light weight rubber cable}	_YQ,YQW	_{Household appliances, small electric equipment}	_{Soft, light and good bending performance;} _{YQW has weather resistance and certain oil resistance}
_{Medium-sized rubber cable}	_YZ,YZW	_{Industry, widely used in agricultural electrification}	_{YZW has weather resistance and certain oil resistance}
_{Heavy rubber cable}	_YC,YCW	_{Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc.}	_{Has good versatility, complete series specifications, good performance and stability;} _{YCW has weather resistance and certain oil resistance}
_{Waterproof rubber cable}	_JHS,JHSB	_{Diving motor}	_{Good bending performance, can withstand frequent movement}

^{MINING CABLE}
^{Power frequency rated voltage U/U}	^{0.38/0.66kV, 0.66/1.14kV, 1.9/3.3kV}
^{Max.permissibte operating temperature of cable conductor}	^{65℃ for 0.38/0.66kV;} ^{0.66/1.14kV and 90°C for 1.9/3.3kV}
^{Min permissibie operating ambient temperature of cable}	^-35℃.
^{Bending radius of cable}	^{shall not be 6 times less than cable OD.}
^Application	^{used for the source connection for coal cutter and analogous eggplant atsated voltage up to and including 1.9/3.3kV}

^TYPE		_NAME	_APPLICATION
^{NON-FIRE PROPAGATING}	^{FLAME RETARDANT}	_NAME	_APPLICATION
^UC	^MC	^{Rubber sheathed flexible cable for mines cable for coal-cutting mining}	^{0.38/0.66kV Driller connection under the mine shaft}
^UCP	^MCP	^{Screened Rubber-jacketed flexible cable for coal-cutting machine}	^{0.38/0.66kV, 0.66/1.14kV, 1.9/3.3kV Driller connection under the mine shaft}
^UY	^MY	^{Rubber sheathed, movable and flexible cable for mines}	^{0.38/0.66kV Connecting various coal cutters and similar equipment under the mine shaft}
^UYP	^MYP	^{Screened, Rubber sheathed, movable and flexible cable for mines}	^{0.38/0.66kV, 0.66/1.14kV Connecting various coal cutters and similar equipment underthe mine shaft}
^UYQ	^MYQ	^{Rubber sheathed light-duty flexible cables for mines}	^{0.3/0.5kV Connecting various coal cutters and similar equipment under the mine shaft}
^UZ	^MZ	^{Electric drill Rubber cables for mines}	^{0.3/0.5kVPower connection of various movable coal cutters under the mine shaft}
^UZP	^MZP	^{Electric drill shielded Rubber cables for mines}	^{0.3/0.5kV Power connection of various movable coal cutters under the mine shaft}

^{Waterproof Rubber Sheathed Cable}
^Model	^{JHS; JHSB}
^{Rated Voltage}	^{450/750v; 300/500v and below diving click}
^{NO.of Core}	^{1, 3, 4, 3+1}
^{Nominal Sectional Area ( mm2 )}	^{1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70}
^{Long-term allowable operating temperature}	^{no more than 65°C} ^{no more than 85°C( Submersible pump for power transmission )}
^Features	^{1. It has good electrical insulation performance under long-term water immersion and large water pressure.} ^{2. The waterproof rubber sheathed cable has good bending performance and can withstand frequent movement} ^{3. High-density glue is selected with waterproof function.}
^Application	^{Waterproof rubber sheathed cable for power transmission on diving taps with AC voltage of 500v and below.}
^Application	^{It is suitable for processing equipment such as submersible pumps, coal mines, underwater operations, underwater landscape lights, etc.}

^{WELDING CABLE}
^{Core operating temperature}	^{no more than 65°C}
_Type	^{YH, Matural rubber sheathed for Welding Cable}
_Type	^{YHF, Horoprene Rubber or Other Syntheitic sheathed Welding Cable}
^Application	^{This product suitable for the welding machine of which voltage to the ground is not more than dc 200v and pulsating current value is 400v}

 Welding Cable Technicial Parameters

_{Nominal section area} _(mm2)	_{No./diameter of stranding} _(mm)	_{Nominal sheath thickness} _(mm)	_{Overall diameter} _(mm)		_{Max. conductor resistance at 20℃} _(Ω/km)		Reference Weight	Reference Weight
_{Nominal section area} _(mm2)	_{No./diameter of stranding} _(mm)	_{Nominal sheath thickness} _(mm)	_Min.	_Max	_{Without tinned}	_{With tinned}	YH	YHF
₁₀	_322/0.20	_1.8	_7.5	_9.7	_1.91	_1.95	¹⁴⁶	^153.51
₁₆	_513/0.20	₂	_9.2	_11.5	_1.16	_1.19	^218.9	^230.44
₂₅	_798/0.20	₂	_10.5	₁₃	_0.758	_0.78	^316.6	^331.15
₃₅	_1121/0.20	₂	_11.5	_14.5	_0.536	_0.552	⁴²⁶	^439.87
₅₀	_1596/0.20	_2.2	_13.5	₁₇	_0.379	_0.39	^592.47	^610.55
₇₀	_2214/0.20	_2.4	₁₅	_19.5	_0.268	_0.276	⁷⁹⁰	^817.52
₉₅	_2297/0.20	_2.6	₁₇	₂₂	_0.198	_0.204	^1066.17	^1102.97
₁₂₀	_1702/0.30	_2.8	₁₉	₂₄	_0.161	_0.164	^1348.25	^1392.55
₁₅₀	_2135/0.30	₃	₂₁	₂₇	_0.129	_0.132	^1678.5	^1698.72
₁₈₅	_1443/0.40	_3.2	₂₂	₂₉	_0.106	_0.108	^1983.8	^2020.74
₂₄₀	_1908/0.40	_3.8	₂₅	₃₅	_0.0801	_0.0817	/	/
............
