Horizontal Sheet Metal Continuous Rolling Resistance Welder Automatic for Shock Parts

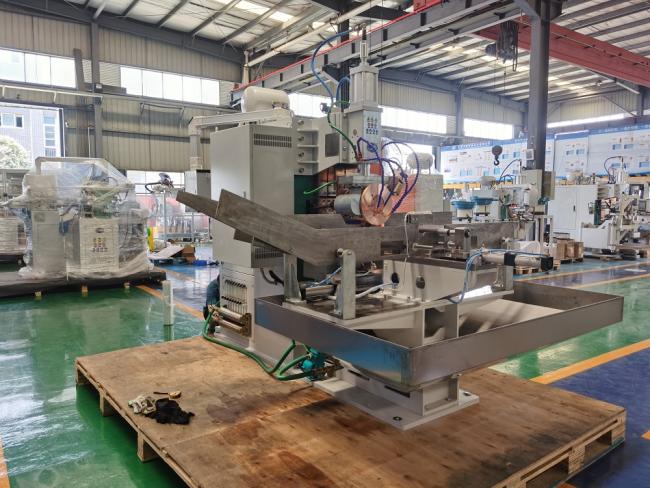

This automatic horizontal continuous roll resistance welder is engineered for high-precision seam welding of cylindrical components such as shock absorber piston tubes. It performs automated loading, detection, and welding in one continuous process, ensuring millimeter-level accuracy and strong, leak-proof seams. Ideal for automotive parts, tanks, and enclosures, the machine adapts to various material and size requirements, delivering consistent quality and reduced cycle times in production.
| Model/Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
|---|---|---|---|---|---|---|
| Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
| Voltage input | V | 380 | 380 | 380 | 380 | 380 |
| Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
| Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
| Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
| Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
| Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
| Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
| Motor Power | W | 550 | 750 | 750 | 750 | 400 |
| Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
| Weight | Kg | 380 | 510 | 630 | 530 | 700 |
- Servo-Driven Welding Motion
Equipped with a servo motor drive system, it provides stable rotation with adjustable speed and minimal torque fluctuation. The electrode rotates via friction against the workpiece, ensuring smooth operation and precise control over the welding process.
- PLC-Based Control with Touch Interface
An industrial PLC controls the entire welding cycle, allowing fast response, reliable operation, and easy programming. Through the touchscreen, users can set welding parameters, monitor real-time data, and export production records via USB or MAS system connectivity.
- Consistent & High-Strength Welds
Welding parameters are system-controlled to ensure uniform weld appearance, high joint strength, and reliable sealing. The result is repeatable weld quality that meets strict industrial standards.
