Slaughter Saw Blade Size: 16mm x 4 teeth/inch x 0.5mm thick
Metal Cutting Saw Blade Size: 27mm x 5/8 teeth/inch x 0.9mm thick
Woodworking Saw Blade Size: 35mm x 22mm x 1.1mm thick
Saw Blade Width: 6-80mm, saw blade thickness: 0.45-1.6mm
Aluminium Band Saw Blade Butt Welding Machine
Price:
$8,000-8,500 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Xingweihan
Product Description
|
Item/Model
|
DN-40
|
DN-63
|
D(T)N-80
|
D(T)N-100
|
D(T)N-125
|
D(T)N-160
|
D(T)N-200
|
|
Rated power At 50%(KVA)
|
40
|
63
|
80
|
100
|
125
|
160
|
200
|
|
Rated primary power(V)
|
380
|
380
|
380
|
380
|
380
|
380
|
380
|
|
Secondary Voltage(V)
|
5.2
|
6.7
|
7.9
|
8.3
|
8.6
|
9.1
|
10.6
|
|
Rated frequency(HZ)
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Max.Short Circuit Current(KA)
|
14
|
15
|
16
|
18
|
20
|
28
|
34
|
|
Max. weld power(KVA)
|
62
|
86
|
170
|
280
|
300
|
330
|
410
|
|
Throat(MM)
|
400
|
400
|
400
|
450
|
450
|
450
|
450
|
|
Max.Froce at electrodes(N)
|
6000
|
6000
|
10000
|
10000
|
10000
|
12000
|
12000
|
|
Working stroke(MM)
|
20
|
20
|
30
|
40
|
40
|
50
|
50
|
|
Cooling Water Consumpion 2.5bar(L/min)
|
6
|
6
|
8
|
8
|
8
|
10
|
10
|
|
Electrodes tip(MM)
|
Φ13*45
|
Φ13*45
|
Φ16*45
|
Φ16*45
|
Φ16*45
|
Φ20*45
|
Φ20*45
|
|
Arms(MM)
|
Φ50*150
|
Φ50*150
|
Φ80*220
|
Φ80*220
|
Φ80*220
|
Φ80*220
|
Φ80*220
|
|
Projection Clamping Plate(MM)
|
125*125
|
125*125
|
200*200
|
200*200
|
200*200
|
200*200
|
200*200
|
|
Max.Welding Capaciry A3 steel(MM)
|
2.5+2.5
|
3+3
|
4+4
|
4.5+4.5
|
5+5
|
5+5
|
6+6
|
Product Overview
Aluminium Band Saw Blade Butt Welding Machine
The product employs advanced flash butt welding technology, achieving high-quality welding of saw blades through the coordinated operation of core components such as the mainframe, pneumatic transmission mechanism, secondary circuit, welding transformer, and welding controller. The user-friendly human-machine interface design facilitates rapid operator mastery of the equipment. The transparent protective cover effectively prevents spark splatter during the welding process, enhancing on-site operational safety. The equipment supports butt welding of saw blades with varying cross-sectional areas, accommodating multiple saw blade specifications to meet welding requirements across diverse industries.
1. The host frame has excellent rigidity and long-term operation without deformation: The host frame is made of high-quality steel plate welding or integral casting structure, which has undergone strict aging treatment and stress relief technology, and has extremely high static rigidity and dynamic impact resistance. It can still maintain structural stability under high-frequency welding impact, ensuring long-lasting and reliable welding accuracy.
2. The pneumatic transmission mechanism is durable and reliable, suitable for high-intensity operations: well-known brands of cylinders, solenoid valves, and pneumatic accessories are selected, and key moving parts are treated with wear-resistant materials. The action life can reach over one million times, which can adapt to continuous and high-intensity production rhythms and reduce equipment downtime caused by aging pneumatic components.
3. Wear resistant design of welding electrodes and clamping components, extending replacement cycle: The electrodes are made of high conductivity and high wear resistant copper alloy materials, and the key contact surfaces of the clamping mechanism are hardened to have excellent wear and arc erosion resistance, maintaining good contact under frequent welding conditions and significantly extending the electrode replacement cycle.
4. Standardized layout of the water and gas circuit system, convenient for heat dissipation and maintenance: The internal water and gas circuit system of the equipment adopts a partitioned layout, and the cooling water circuit effectively cools down the heating components such as transformers, electrodes, and secondary circuits. The pipeline identification of the gas circuit system is clear and the connection is reliable, which facilitates daily inspection and regular maintenance, reducing maintenance difficulty.
5. Compact overall structure and high space utilization: The equipment undergoes structural optimization while ensuring complete functionality, occupying a small area for flexible layout in limited workshop space. At the same time, the center of gravity of the entire machine is low and the installation is stable, eliminating the need for complex foundation construction and reducing equipment entry and relocation costs.
Detail Images
Double-layer Cylinder
Provides graded clamping and forging force. Through a double-layer piston structure, a "light first, heavy later" pressure output is achieved - light pressure is used for rapid feed and positioning, while heavy pressure is used for strong forging at the welding terminal to ensure a dense weld seam and avoid impact damage to thin saw blades.
Human Computer Interaction Interface
Implement information exchange between devices and operators. Used for setting and modifying welding parameters, storing and calling multi specification saw blade formulas, real-time monitoring of equipment operation status, and displaying and prompting fault alarm information, making the operation more intuitive and convenient.
Copper Alloy Electrode
Made of high-quality chromium zirconium copper, it offers excellent conductivity and wear resistance. The internal cooling channel ensures efficient heat dissipation, delivering stable and reliable performance for both fixed and moving electrodes.
Waterway Components
All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.
General Strctures
Scene images
Our factory can customize according to your requirments. More details, please contact!

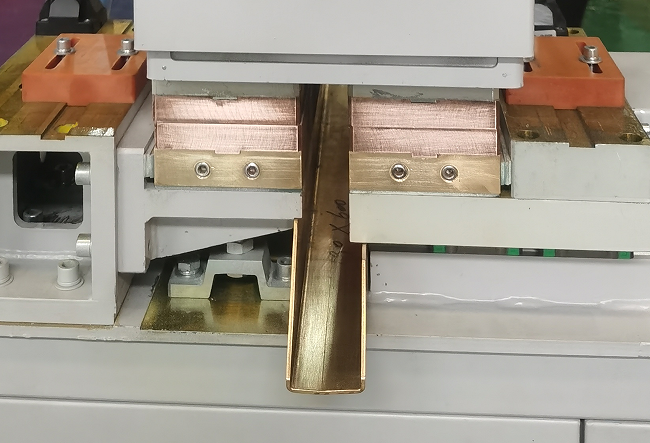

Welding Test
Welding Workpiece

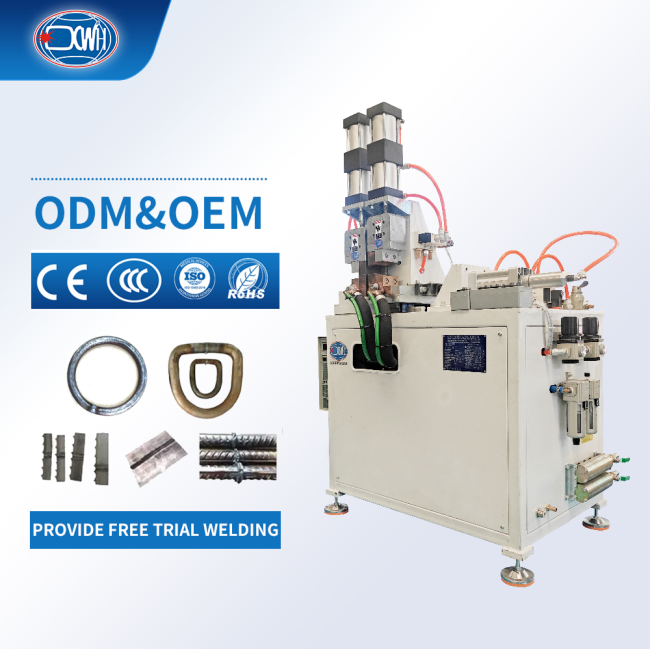

Similar Products
Wire/Rebar Butt Welding Machine
The butt welder consists of a main frame, a clamping mechanism, a forging mechanism, a secondary circuit, a welding transformer, a welding controller, and a water and gas circuit system. It is suitable for precise docking of steel wires and bars of different diameters. The equipment achieves coordinated action of compression and forging through rigid structure and intelligent control. Welding parameters can be accurately set and the process is automatically completed. It has the characteristics of stable welding quality, high production efficiency, and easy operation.
T-type Butt Welding Bachine
The T-type butt welding machine consists of core components such as the main frame, clamping mechanism, forging mechanism, secondary circuit, welding transformer, welding controller, and water and gas circuit system. It is mainly used for T-type butt welding of steel wires and bars of different diameters. Through precise clamping and forging control, stable welding output, and intelligent parameter adjustment, it achieves reliable welding with firm joints and beautiful shapes.
