2.5KW Cocoa Powder Packaging Machine , Automatic Powder Pouch Packing Machine
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
100 Set/Month
Brand:
Shiyuan
Product Description

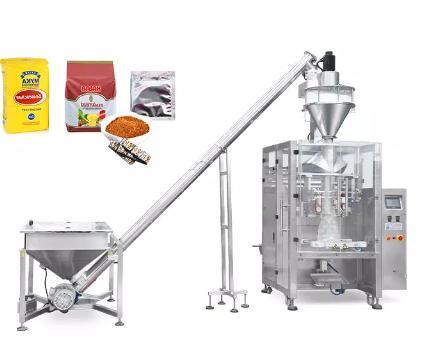

Cocoa Chili Powder Pouch Packing Machine Stand Up OPP / CPP Material
Main Function
Features
- Adopt import AC motor and frequency control of motor speed, run stably.
- Using heat sealing packing materials, the machine can complete the procedures of conveying product, weighing, conveying bags, open bags, filling product, sealing, conveying final packages continuously and automatically.
- Different product could be packed by choosing different filling machine.
- Composed by PLC, touch screen, VVVF, etc, has high integrated level and control ability.
- Photoelectric sensor, encoder and close switches are all adopt advanced sensing element.
- Suitable to use flat bag, stand bag, zipper bag, wide-bottom bag, etc.
powder packing machine theory and features
- the key switch + full digital display. Stable and reliable operation.
- computer control, the system uses stepper motor subdivision technology, bagging accuracy, the error is less than 1 mm.
- automatic tracking color code, intelligent eliminate false color, automatic positioning of the bag, fixed length.
- heat sealing dual temperature control, intelligent temperature control, good thermal balance, to ensure the quality of sealing, suitable for a variety of packaging materials.
- intelligent photoelectric color positioning control system.
- powder packing machine uses the new rocker cup adjustment device can be adjusted at any time during the operation of the machine packaging capacity, reduce material losses and improve work efficiency.
Powder Packaging Machine Specification
|
Packing Machine
|
|
|
Model
|
SLIV-320 / 420SB
|
|
Packing material
|
OPP / CPP OPP / PE NILO / PE PE
|
|
Bag size
|
L : 50 - 200mm
W : 50 - 150mm |
|
Packing speed
|
10 - 50 bags / min
|
|
Max film width
|
320mm
|
|
Voltage
|
220V AC / 50Hz
|
|
2Power
|
2.5kW
|
|
Dimension
|
1030 * 500 * 1000(mm)
|
|
Weight
|
250kg
|
