Hydraulic Water well Drilling Rig with Diesel Engine mounted on crawler, trailer or truck
SNR1000CS Full Hydraulic Double Rotary Head Water Well Drilling Rig
Descriptions:
Full hydraulic double rotary head water well drilling rig, It can be drilled with DTH hammer, and can also be drilled with mud pump , casing rotator to meet different geological conditions. It is suitable for large diameter water wells, pile holes, mining rescue and other projects.

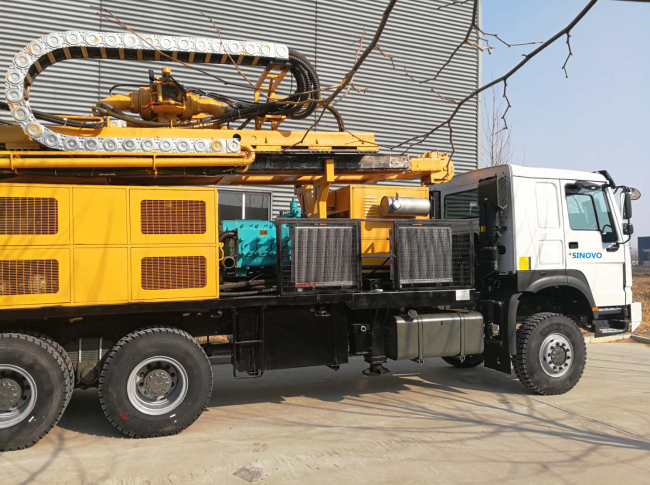

The rig can provide three different types of drilling rig, such as truck, trailer type and crawler type, according to the needs of the users. The drilling rig is powered by two diesel engines. The upper rotary power head is made up of high-speed motor and gearbox, and the bottom rotary head is made up of low speed, high torque hydraulic motor and gearbox. The propulsion system is fed by the oil cylinder. Rotating and feeding system are controlled by hydraulic pilot control which can achieve stepless speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions are controlled by hydraulic system. The structure of rig is designed to reasonable, which is easy to operate and maintenance.
SNR1000CS full hydraulic double rotary head water well drilling rig, It can be drilled with DTH hammer, and can also be drilled with mud pump , casing rotator to meet different geological conditions. It is suitable for large diameter water wells, pile holes, mining rescue and other projects. The rig can provide three different types of drilling rig, such as truck, trailer type and crawler type, according to the needs of the users. The drilling rig is powered by two diesel engines. The upper rotary power head is made up of high-speed motor and gearbox, and the bottom rotary head is made up of low speed, high torque hydraulic motor and gearbox. The propulsion system is fed by the oil cylinder. Rotating and feeding system are controlled by hydraulic pilot control which can achieve stepless speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions
are controlled by hydraulic system. The structure of rig is designed to reasonable, which is easy to operate and maintenance.
SNR1000CS Technical Parameters:
| Drill model | SNR1000CS | ||
| Diesel engine | Model Cummins | 6LTA8.9-C325 | |
| KW | Power | 239 | |
| rpm | Rotate speed | 2200 | |
| Rotary head | rpm | Rotate speed | 0-150 |
| N.m | Max. torque | 32000 | |
| KN | Max. pullback force | 500 | |
| KN | Max. feed force | 500 | |
| Mast | m | 14.5 | |
| Angle | 0︒-90︒ | ||
| m | Stroke | 10.5 | |
| Rod | mm | Diameter | 89/114/127/159 |
| RC (reverse circulation) drilling | mm | Max. diameter | 1500 |
| m | Depth | 200 | |
| Rock with water and air composite DTH | mm | Max. diameter | 600 |
| m | Depth | 600 | |
| m³/Kg | Air consumption | 31/24 | |
| New DTH | mm | Max. diameter | 300 |
| m | Depth | 1500(1000) | |
| m³/Kg | Air consumption | 31/24 | |
| Traditional DTH | mm | Max. diameter | 300 |
| m | Depth | 120 | |
| m³/Kg | Air consumption | 31/24 | |
| RC pump | Model | 6,7 | |
| Mud pump | Model | BW1200/14 | |
| Winch | KN | Lifting force | 15+50+100 |
| Transport dimension | Kg | Weight | 25000 |
| LxWxH mm | Overall dimensions | 14500x2650x3800 | |
Any further information about the specification, after sale service, price, etc, please feel free to contact with us.
