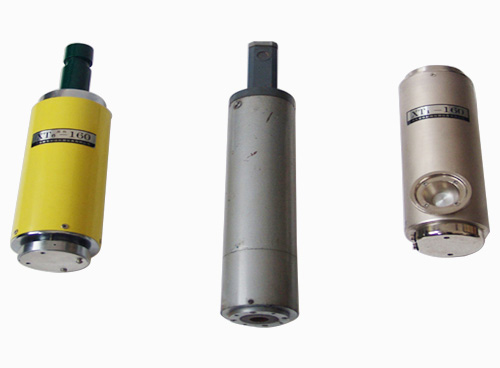

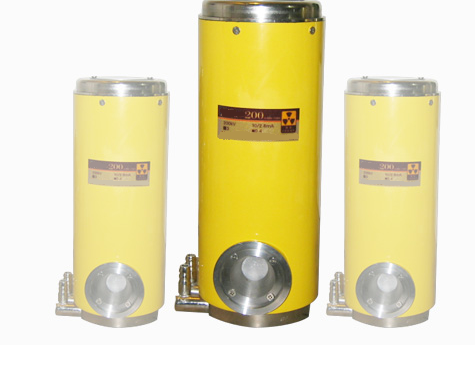

X Ray Metal Tube for Non Destructive X Ray Inspection System 160KVp 4mA
Specifications of the x ray metal tube for x ray inspection system
X RAY TUBE (METAL)
|
No. |
Model |
Tube voltage(KVp) |
Tube current(mA) |
Focus point(mm) |
Filament voltage(V) |
Filament current(A) |
Radiant angle |
Model applied |
|
|
1 |
HX-160(A) |
160 |
4／19 |
0.4／3.0 |
4.2／5.5 |
4.1／4.2 |
40°+5° |
XYD-160 |
|
|
2 |
HX-160(B) |
160 |
4／10 |
0.4／1.5 |
4.2／5.5 |
4.1／4.2 |
40°+5° |
XYD-160 |
|
|
3 |
HX-160(C) |
160 |
4／4 |
0.4／0.4 |
4.2 |
4.1 |
40°+5° |
XYD-160 |
|
|
4 |
HX-160(D) |
160 |
10／10 |
1.5／1.5 |
5.5 |
4.2 |
40°+5° |
XYD-160 |
|
|
5 |
HX6-160 |
160 |
6 |
0.3×3.0 |
2.7 |
4.2 |
25°×360° |
XYD-160 |
|
|
6 |
HX8-225(A) |
225 |
2.8／13.0 |
0.4／3.0 |
4.2／5.5 |
4.1／4.2 |
40°+5° |
XYD-225 |
|
|
7 |
HX8-225(B) |
225 |
2.8／7.0 |
0.4／1.5 |
4.2／5.5 |
4.1／4.2 |
40°+5° |
XYD-225 |
|
|
8 |
HX8-225(C) |
225 |
6 |
0.3×3.0 |
2.7 |
4.2 |
25°×360° |
XYD-225 |
The x ray metal tube can be used with any international brand machines.
We offer customized x ray tube as customer request.
