HUATEC Lab Mixer / 2501 Series Laboratory Mixer With Frequency - Adapter To Adjust Speed
HUATEC Lab Mixer
Product Introduction:
2501 series Laboratory Mixer adopts frequency- adapter to adjust speed with the advanced touch-screen control design. Enable to disperse, mix and grind by changing different impellers. Through the touch- screen to set the speed (RPM) and the time of disperse, mix and grind. It's the best choice for R&D,laboratory and spot testing.
Introduction:
2501 series Laboratory Mixer adopts frequency- adapter to adjust speed with the advanced touch-screen control design. Enable to disperse, mix and grind by changing different impellers. Through the touch- screen to set the speed (RPM) and the time of disperse, mix and grind. It's the best choice for R&D,laboratory and spot testing.
Application:
This Laboratory Mixer is applicable to the high- speed stir, dissolution and dispersion of liquid and solidification material in coating, paint, ink, pigments, cosmetic, foodstuff, resin, adhesive, latex, medicine, petroleum and other fields.
Technical Specification:
◆ Touch-screen control technology and emergency switch
◆ Time Adjustable
◆ Maximum Dispersion Volume: 10L
◆ Maximum Speed: 9000 rpm
◆ Electromotor: Frequency modulation motor adoption

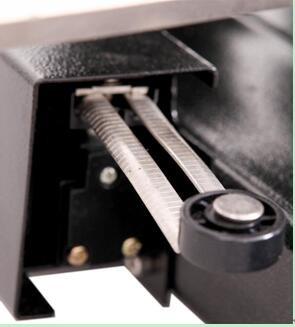

◆ Lifting System: Manual or automatic lift

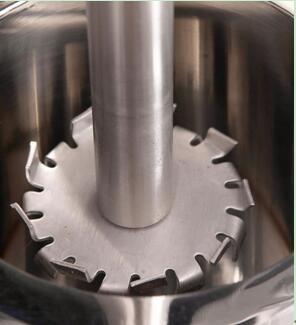

◆ Milling disc is available
Order Information:
| Order No. | Motor Power(w) | Speed(rpm) | Lifting Distance(mm) | Lifting Type | Vessel Available(L) |
| 2501/1 | 550 | 30-9000 | 250 | Manual | 0.5, 1.5 |
| 2501/1L | 550 | 30-9000 | 250 | Manual | 0.5, 1.5 |
| 2501/2L | 750 | 60-6000 | 280 | Manual | 0.5, 1.5 |
| 2501/2A | 750 | 60-6000 | 280 | Automatic | 1.5, 3, 5 |
| 2501/3A | 1100 | 60-5500 | 330 | Automatic | 3, 5, 10 |
| 2501/5A | 1500 | 300-6000 | 400 | Automatic | 5, 10, 20 |
◆Standard equipped with 4 discs.
Order Information of Accessories:
| Order No. of Accessories | Disc Dia.(mm) |
| 2510/1 | 35 |
| 2510/2 | 50 |
| 2510/3 | 60 |
| 2510/4 | 80 |
| 2510/5 | 100 |
| 2510/6 | 120 |
| 2510/7 | 150 |
| 2510/8 | 200 |
| Order No. of Accessories | Double Wall Stainless Dispersing Vessel(L) |
| 2511/1 | 0.5 |
| 2511/2 | 1.5 |
| 2511/3 | 3 |
| 2511/4 | 5 |
| 2511/5 | 10 |
| 2511/6 | 20 |
