Accurate Coating Thickness Gauge Customized Automotive Paint Thickness Gauge TG-2100 5000 Micron​

Automotive Paint Thickness Gauge Product Description:

With separate probe(s)
Function: TG-2100F (ferrous substrate) TG-2100N (non ferrous substrate) TG-2100FN (2 in 1, F & NF type)

Operating principle: magnetic induction/eddy current (F/NF)

Measuring range:0-5000um/0-50mil

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AAA(UM-4)battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um

Application:
1. TG-2100F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. TG-2100N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

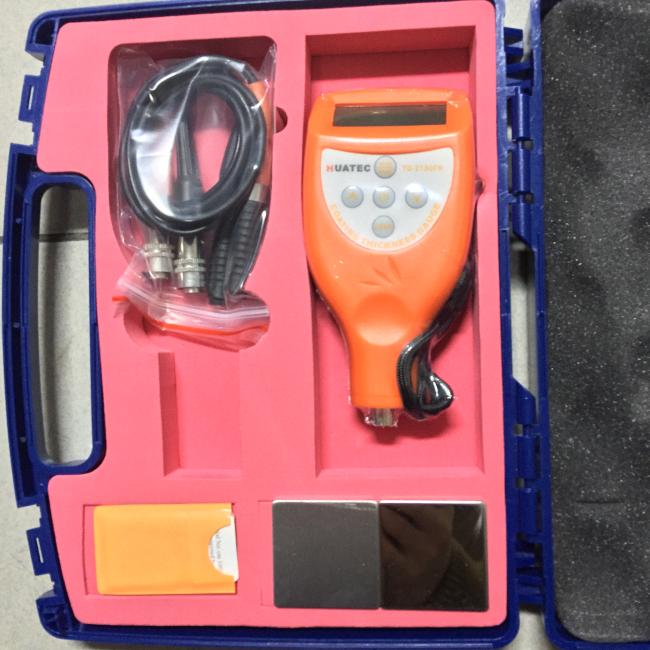

Standard Delivery of TG2100FN:
Main unit (5000um)                 1
F type probe                                 1
N type probe                                 1
F calibration base set                 1
N calibration base set                1
Calibration foil set                       1set (4 foils)
Carrying case                                1
Instruction manual                     1

Optional Accessories
Cable and software for RS-232C/ USB

Customized testing range

Bluetooth

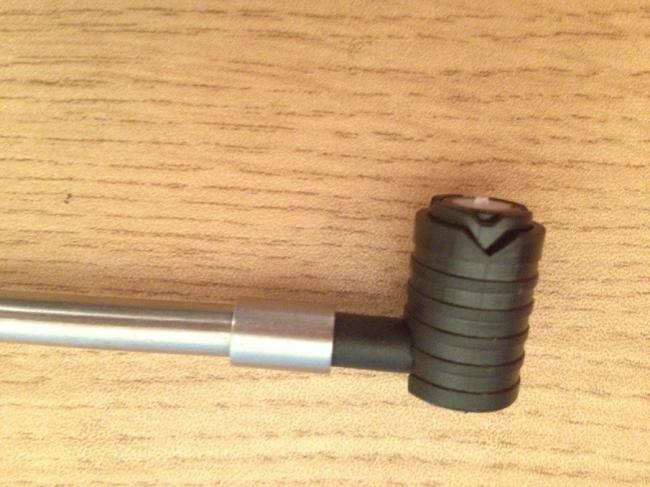

90 degrees angle probe
