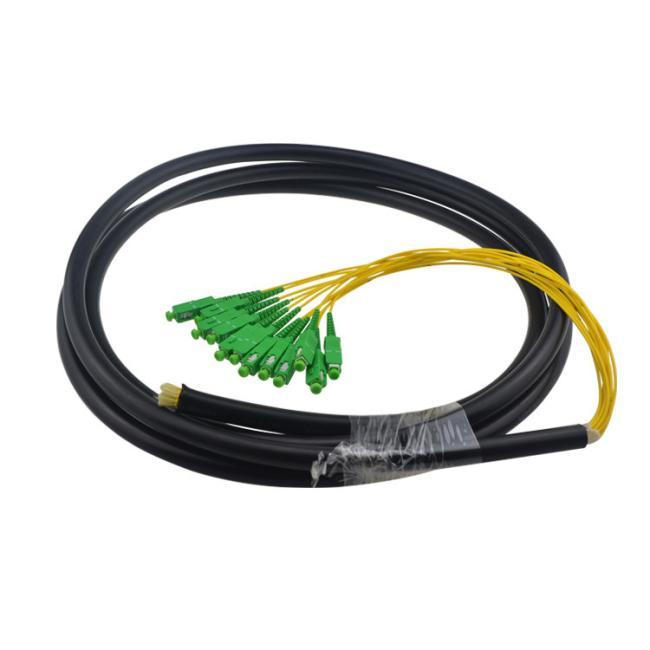

24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail
24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail
2 4 6 8 12 24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail Patch Cord Jumper Wire Cable
Waterproof fiber optic pigtail is made up with high quality connector, high quality waterproof fiber
optic cable and qualified waterproof copper joint assembly. It features high environmental suitability, easy installation, a long lifetime, high tensile strength and sound grounding. Due to great water resistance, the fiber pigtail can also work normally even in many harsh conditions. The waterproof optical fiber pigtail can be equipped with different connectors such as FC,SC,LC,ST,MU,MTRJ,SMA...according to customers' specific requirements.
Waterproof fiber optic pigtail is a fiber optic component that has a durable and waterproof fiber optic connector installed on one end and a length of exposed fiber at the other end. Fiber optic pigtails are used to connect the major optical cable lines and the optical receivers in optical fiber communication
systems.
Characteristics:
1. Fiber core: 2, 4, 6, 8,12 optional
2. Waterproof features & reliable performance
3. Pull & erosion resistance, good grounding
4. Low insertion loss, high return loss, excellent exchangeability, high stability
5. The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.
Application:
Optic fiber communications systems Optical CATV & LAN
Data & Communication System
Connection for main fiber and optical receiver.
Operating Temperature: -40°C to +85°C
| arameter: | Single mode | Multi mode(optional) |
| Insertion Loss | ≤0.3dB | ≤0.20dB |
| Return Loss |
≥45 dB (PC) ≥50 dB (UPC) ≥60 dB (APC) |
≥35 dB (PC) ≥45 dB (UPC) |
| Wavelength | 1310nm,1550nm | 850nm,1310nm |
| Repeatability | ≤0.1 | |
| Durability | ≤0.2 dB typical change, 1000 matings | |
| Interchangeability | ≤0.2dB | |
| Cord diameter | 3.0mm | |
| Connector Available | SC,FC,ST,LC,MU,MTRJ | |
| Fiber core available | 4,6,8,12,24 fiber… | |
