Flat Ribbon FC/PC SM G657A2 G652 Fiber Optic Pigtail
Price:
Negotiable
MOQ:
10PCS
Delivery Time:
3-5 working days
Brand:
CY COM
Product Description

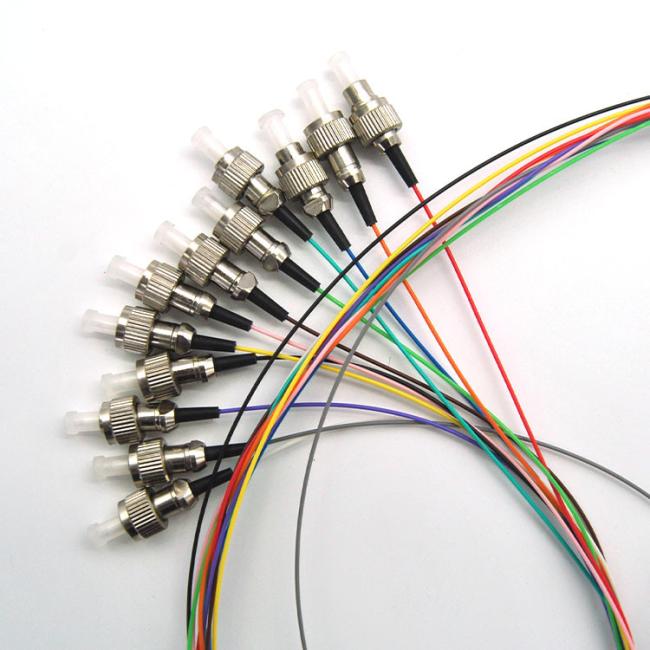

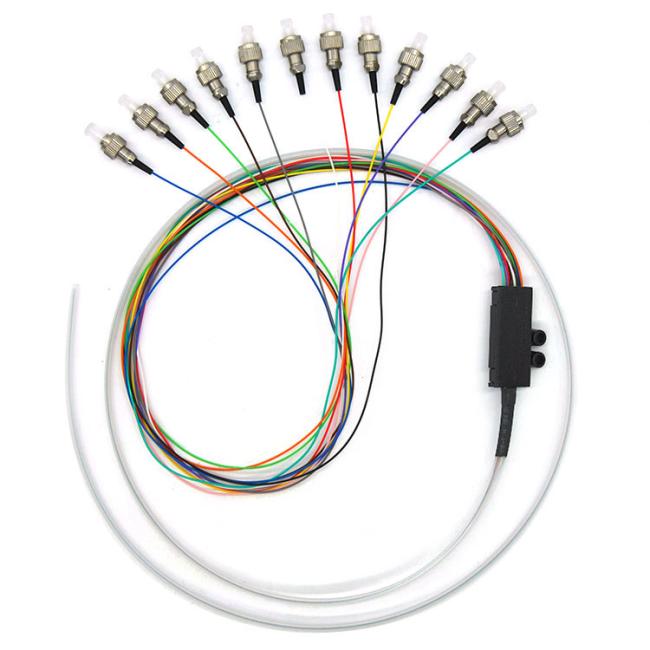

Flat Ribbon FC/PC SM G657A2 G652 Fiber Optic Pigtail
Optical Fiber Flat Ribbon Pigtail FC/PC-SM-12Cores for corning G657A2 G652 Fiber
Description:
CY COM provide various of fiber optic pigtails for your splicing application, includes 1fiber, 4/6/8/12 fiber pack with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket. Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.
Features :
Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
Low insertion loss, high return loss
Good in repeatability and exchangeability
High dense connection, easy for operation
Application:
Telecommunication
Computer networks
CATV networks Active device termination
Instrumentation
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
