SC LC FC Fiber Optic Patch Cord 3.0mm LSZH PVC Pigtail

Price Negotiable
Price: Negotiable
MOQ: 10PCS
Delivery Time: 3-5 working days
Brand: CY COM
Product Description

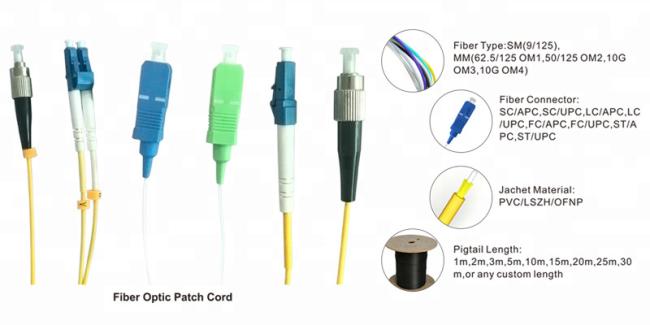

SC LC FC Fiber Optic Patch Cord 3.0mm LSZH PVC Pigtail

SC LC FC 2.0 3.0mm Fiber Optic Patch Cord LSZH PVC Pigtail Cable Waterproof Round Cable


Description:
FTTH Patch cord or pigtail, refers to the drop cable ends with a connector plug, used to achieve optical active connection, also be made into a single head pigtails, and Flexible Splice, Quick connect and other products combined application, Connector types are SC-PC(APC) and FC-PC(APC) , For FTTH project corridor boxes, drop cable distribution boxes, FTTH fiber boxes and other forms of installation.

Features :
Low insertion loss and high return loss.
Soft ,flexiable ,easy to lay and splice, and with big capacity data transmission

Anti-UV charateristics meet the requirements of relevant standards
The mechanical charateristics meet the requirements of relevant standards

Good mechanical and enviromental characteristic

.


Application:

FTTH,LAN,PON & Optical CATV.

Telecom Net

Optical Fiber Communication System

Optical Fiber Test Equipment



Technical Parameter

Parameters
SC-SC
SCA-SCA
Working Temperature (°C)
-40 — +80
Insertion Loss (dB)
≤0.2
≤0.2
Return Loss( dB)
≥45
≥60
Tensile strength(N)
≥55
≥55
Durability(Times)
Exert a force of 1N for 1 hour at a distance of 0.5meter from the rear of connector.
