12 Colors ST Ribbon Fan Out Single Mode Fiber Pigtails
Price:
Negotiable
MOQ:
10PCS
Delivery Time:
3-5 working days
Brand:
CY COM
Product Description

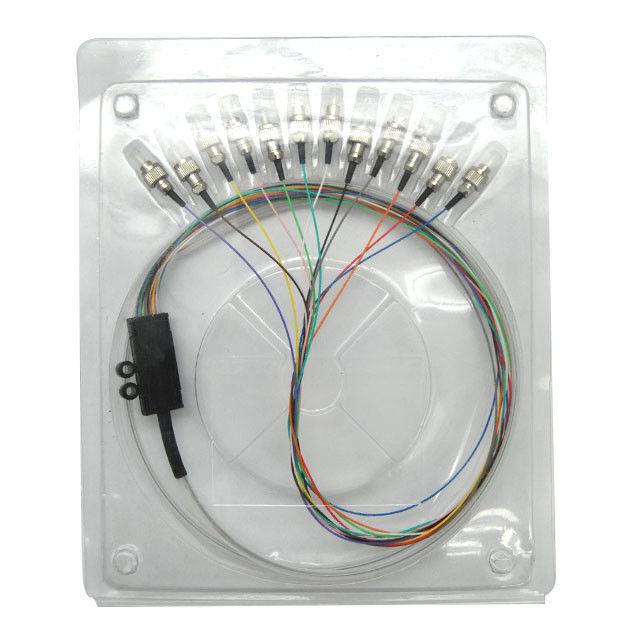

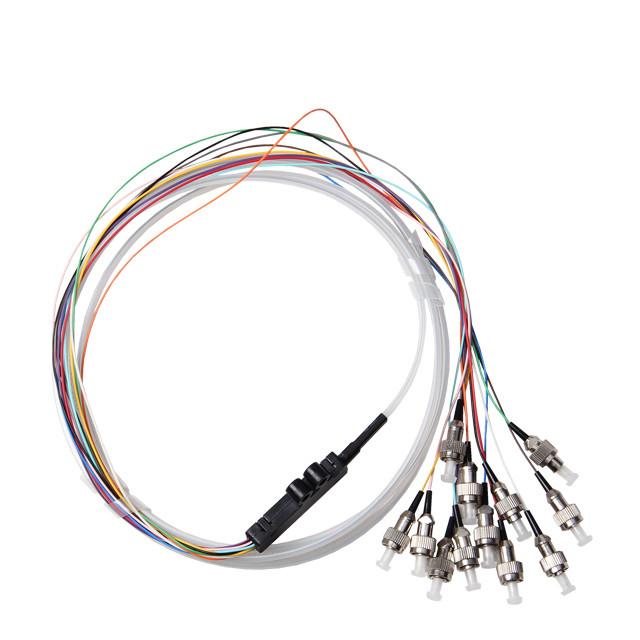

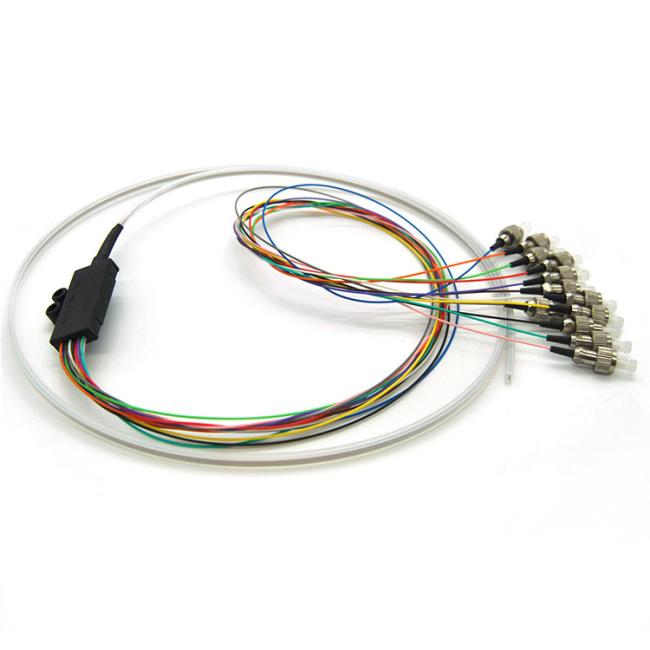

12 Colors ST Ribbon Fan Out Single Mode Fiber Pigtails
12 colors ST ribbon fan-out pigtails, multi fiber fan out kits factory installed for splice stray
Description:
CY COM provide various of fiber optic pigtails for your splicing application, includes 1fiber, 4/6/8/12 fiber pack with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket. Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.
Features :

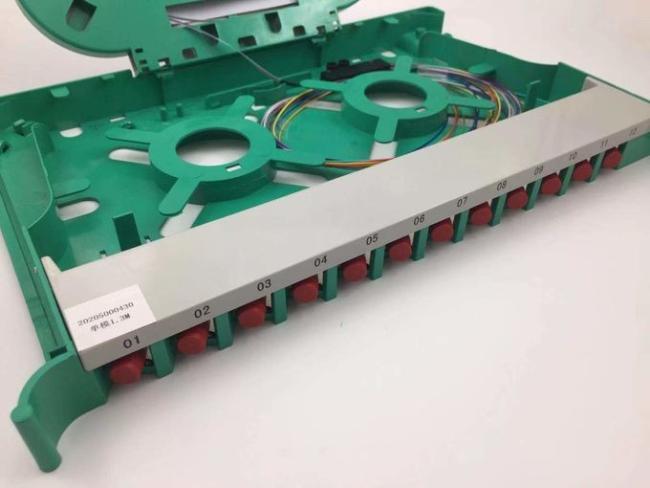

Connect with outside cables and trays inside racks
Small factor design minimizes storage space
Choice for 12 cores ,24 cores and Multi-cores
Comply with Telcordia GR-326-CORE , IEC Standard
Application:
Telecommunication
Computer networks
CATV networks Active device termination
Instrumentation
Parameters
| Fiber count | 12 | Fiber Mode | 9/125μm |
| Connector Type1 | FC/APC | Connector Type2 | Unterminated |
| Fiber Mode | SM | Breakout length | 0.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
