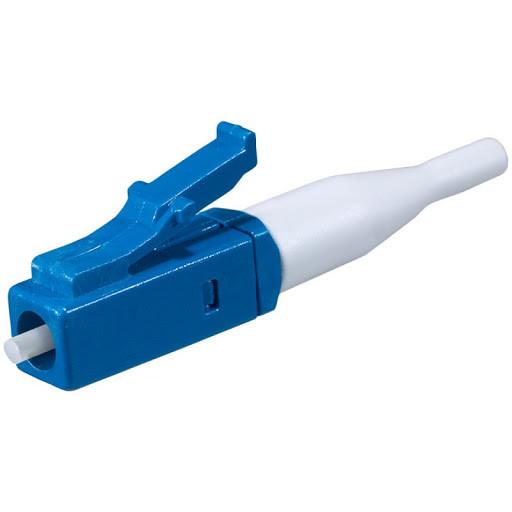

LC PC Connector SM MM PEI FBT Fiber Optics Accessories

Price Negotiable

Price: Negotiable

MOQ: 100pcs

Delivery Time: 3-7 dasys

Brand: CY COM

Product Description

LC PC Connector SM MM PEI FBT Fiber Optics Accessories

Product Description

* PBT material with flame retardant

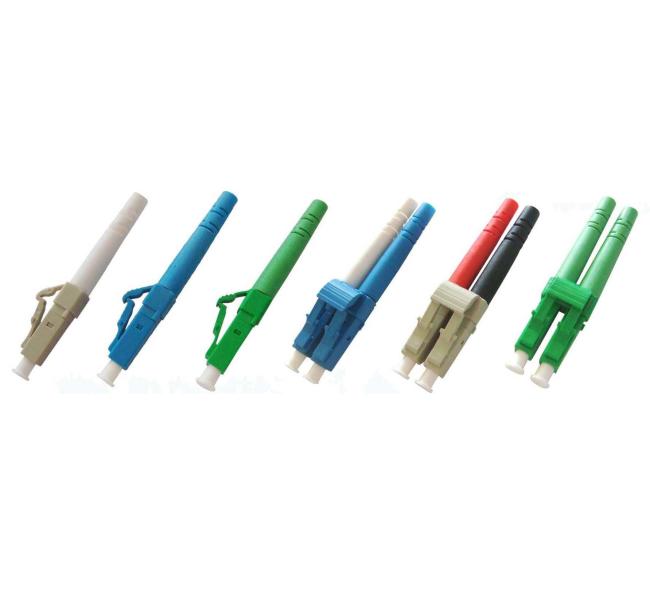

* Simplex or Duplex
* ANSI , IEC ,TIA/EIA , NTT and JIS standard compatible
* UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm
* Precision mechanical dimensions
* Zirconia ferrule PC or 8 degree APC diameter125~128 um high concentricity
* Single mode, Multimode and Angle PC
* Multi-piece type or one-piece type is available
* All parts compliant with ROHS

Features:

High return loss
Low insterion loss
Telcordia style boots
Compiance with TIA/IEA, IEC, RoHS

Application:

CATV, Metro, LAN
Active device temination
Telecommunication networks
Industrial, medical, military

Ordering Information:

Ferrule End-face: PC, UPC, APC
Core Type: Single mode(SM: 9/125um), Multimode(MM: 50/125um or 62.5/125um)
Core quantity: Simplex(SX), Duplex(DX)
Boot diameter: 0.9mm, 2.0mm, 3.0mm
Color: Blue,Yellow,Green

Specification

Items	Single mode					Multimode
	PC	UPC		APC		62.5/125	50/125	50/125 10G
Insertion Loss	<0.2dB					<0.3dB
Return Loss	≥45dB		≥50dB		≥60dB	≥35dB
Durability	<0.1dB typical change, 500 matings
