FC PC SM MM 3.0mm 2.0mm 0.9mm Fiber Patch Cord Connectors
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
3-7 dasys
Brand:
CY COM
Product Description

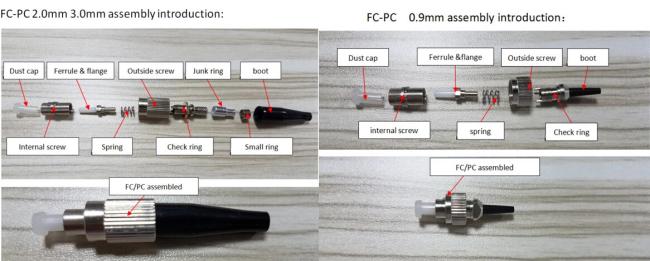

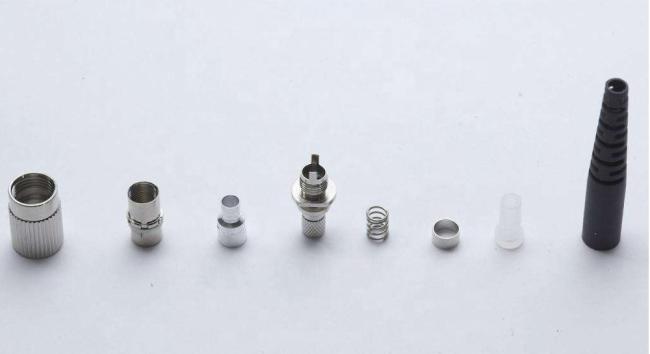

FC PC SM MM 3.0mm 2.0mm 0.9mm Fiber Patch Cord Connectors
CY COM is a proessional manufacturer of fiber optical connector products with good quality low price.
SC.ST,LC, MTRJ and hybird typer/PC/APC fiber optical connector are available.
Features:
--- Low insertion loss and back reflection loss
--- Ferrule end surface pre-domed
--- Precision anti-rotation key and corrosion resistant body
--- UL-rated plastic housing
--- Telcordia style boots
--- Free-floating ceramic ferrule
Ordering information:
- Ferrule End-face: PC, UPC, APC
- Core Type: Single mode(SM: 9/125um), Multimode(MM: 50/125um or 62.5/125um)
- Core quantity: Simplex(SX), Duplex(DX)
- Boot diameter: 0.9mm, 2.0mm, 3.0mm
- Color: Blue,Yellow,Green
Applications:
Gigabit Ethernet;
Active device termination;
Telecommunication networks;
Video; Multimedia;
Industrial;
Military;
Premise installations;
Specifcation:
|
Items |
Single mode | Multimode | ||||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |||
| Insertion Loss | <0.2dB | <0.3dB | ||||||
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB | ||||
| Durability | <0.1dB typical change, 500 matings |
|||||||
