Plastic ST Female to SC Female Hybrid Duplex Fiber Optic Coupler
Plastic ST Female to SC Female Hybrid Duplex Fiber Optic Coupler
Plastic Duplex ST Female to SC Female Hybrid SC-ST Fiber optic Adapter ,Flameresistant material Coupler
Description:
Used for active connection between two optical fiber connectors, including ST, SC, FC, LC, SMA, ST-SC, ST-FC, ST-LC, etc.Among them, ST, SC, FC, LC, SMA and so on are the same kind of type connection (Mating sleeves) , ST-SC, ST-FC, ST-LC and so on are the different kinds of type connection(Hybrid adapter).ST, FC have D shape, rectangle, square, SC, LC have a single, double, four, can meet the needs of different applications.
Features:
Low insertion loss
High return loss
Easy installation
Various specifications
Good environmental stability
Application:
Fiber optic transmission system
CATV networks
LAN
Testing/Measurement Instruments
Fiber distribution frame, Mounts in fiber optic wall mount and rack mount cabinets.
Specification:
| TYPE | ROHS ST - SC Fiber Adapter Hybrid Optical Fiber Adapter Fiber Optic Adaptor, Low Insert Loss | |||||||||
| Product Type | FC or FC/D | ST | SC | LC | SMA | ST/SC | FC/SC | FC/ST | Utralow insertion loss (FC SC ST) |
|
| Insertion loss | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.1 | ≤0.5 | ≤0.4 | ≤0.5 | ≤0.1 | MM≤0.05 | SM≤0.1 |
| Repeated mating | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.05 | |
| Sleeve material | Mainly zirconia ceramic, phosphor bronze can be optional | |||||||||
| Plug and unplug (times) | ≥500 | |||||||||
| Insertion force (g) | 300-600 | |||||||||
| Operating Temperature (°C) | -40~+70 | |||||||||
| Storage Temperature (°C) | -55~+85 | |||||||||
| According Standrand | BelicoreTA-NWT-001209 | |||||||||
| Note | 1. Optical jumper connectors are similar to wire plugs,adptors are similar to outlets. 2. The key indicators of adaptor are insert loss and tensile strength,the smaller interpolation loss & the range of interpolation force, the better. 3. The performance of ceramic sleeve is better than phosphorus bronze sleeve. |
|||||||||

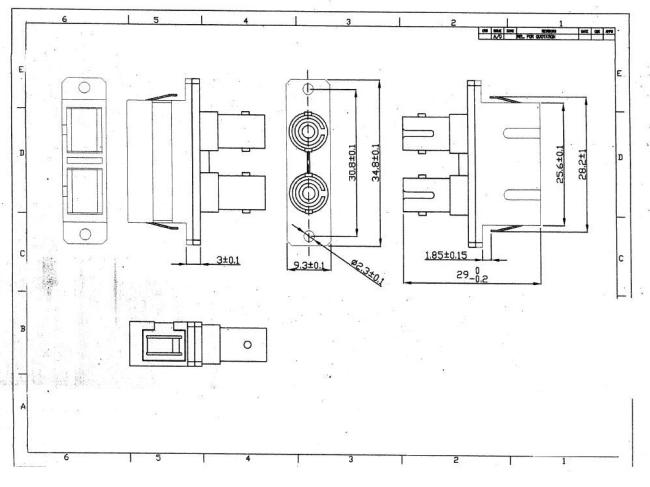

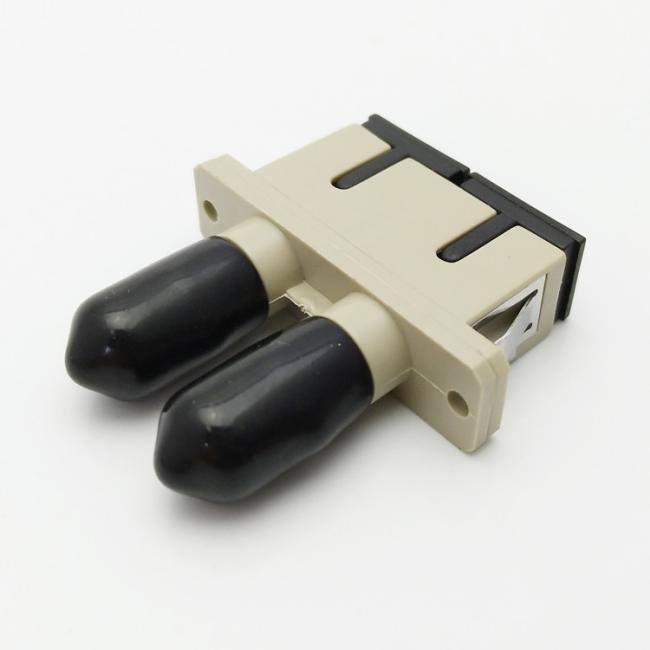

Drawing and Pictures:
