High Return Male to Female Fiber Optic 5dB SC APC Attenuator
Fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is often a requirement in Dense Wave Division Multiplexing (DWDM) and Erbium Doped Fiber where the receiver cannot accept the signal generated from a high-power light source.
2. Fiber Optical Attenuator Features:
1. Design flexibility with various connector style choices and with various attenuation levels
2. Excellent optical performance
3. Variety of fixed attenuation levels.1 to 16 db(in 1db increments),20,25,and 30 db
4. Low reflecation to meet stringent system tequirements
5. Backward compatible with existing transmission equipment
3. Fiber Optical Attenuator Applications:
1. Erbium Doped Fiber Amplifiers (EDFA)
2. Dense Wave Division Multiplexers (DWDM)
3. Optical Network Equipments,optical Test Equipments
4. Overpowered fiber optic systems
4. Technical parameters:
| PARAMETER | UNIT | FIXED ATTENUATORS(FC/SC/ST/LC) |
VARIABLE ATTENUATORS (FC/SC) |
|
| Operation wavelength | nm | 1310,1550 | 1200-1600 | |
| Attenuation Value | dB |
±0.5dB (<10dB) ±1.0dB (>10dB) |
0-30 | |
| Max. Optical Input Power | MW | 500 | 500 | |
| Max. PDI | dB | ≤0.1 | ≤0.1 | |
| Return Loss | dB | PC | ≥45 | |
| UPC | ≥55 | |||
| APC | ≥60 | |||
| Operating Temperature | C | -30~+75 | -30~+75 | |
| Storage Temperature | C | -40~+85 | -40~+85 | |

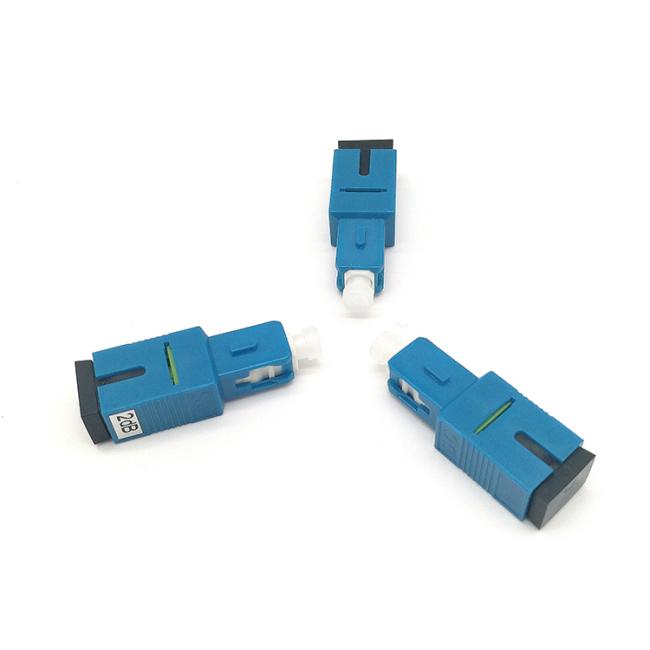

Product picture

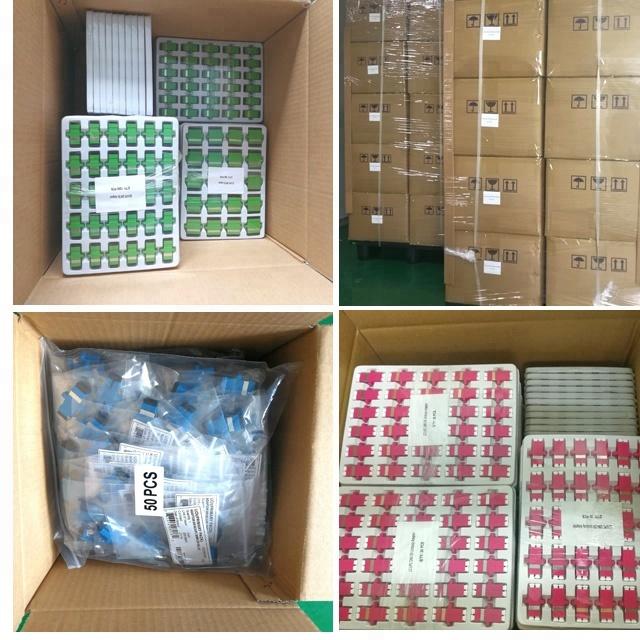

Factory picture
