OADM 2 Fiber In 2 Fiber Out 1470nm WDM CWDM DWDM

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 8-9 working days

Brand: CY COM

Product Description

OADM 2 Fiber In 2 Fiber Out 1470nm WDM CWDM DWDM

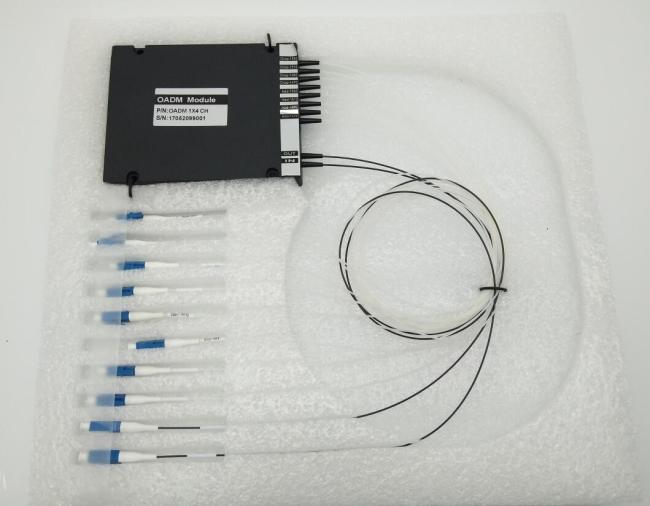

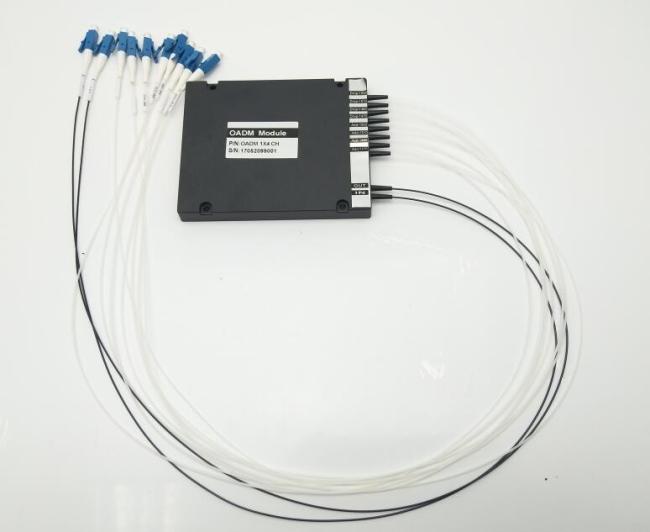

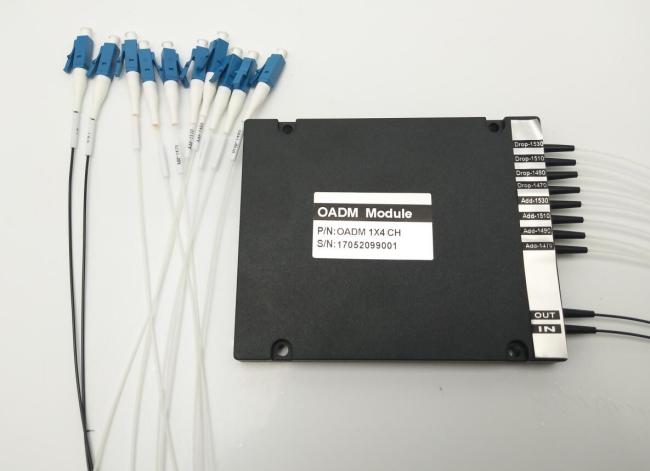

Good quality OADM 2 fiber in/2 fiber out Add/Drop 1470nm, Compact box CWDM OADM ABS Box Module

Description

CWDM is using optical multiplexer to different wavelengths of light to reuse the signals to single fiber transmission, the receiving end of the link, with the aid of photolysis multiplexer to mixed signal in the optical fiber signal is decomposed into different wavelengths, connected to the corresponding receiving equipment.

Applications

CWDM System

PON Networks

CATV Links

Features&Advantage:

• Multiplexing of up to 1 channel on fiber pair

• Low insertion loss, splice/pigtailed ABS module low profile modular design


• Secure physical separation between data channels

• Transparent operation - protocol and topology independent

• Passive, no electric power required

• Duplex LC/UPC, easily support duplex patch cables between transceiver and passive unit

• Wide Operating Wavelength: 1270nm ~ 1610nm

• Operating Temperature: 0℃ to 70℃

Specification

Grade Parameter	Grade "Premium"
Operating Wavelength (nm)	1310 & 1550
Bandwidth (nm)	±10
Insertion Loss (dB)	≤ 0.15 (0.10 typ.)
Isolation (dB)	≥ 20
Polarization Dependent Loss (dB)	≤ 0.1
Thermal Stability (dB/°C)	≤ 0.002
Operating Temperature(°C)	-40 to +85
Directivity (dB)	≥ 60
