Optic Fiber Plc Splitter Filter 1310nm WDM CWDM DWDM

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 8-9 working days

Brand: CY COM

Product Description

Optic Fiber Plc Splitter Filter 1310nm WDM CWDM DWDM

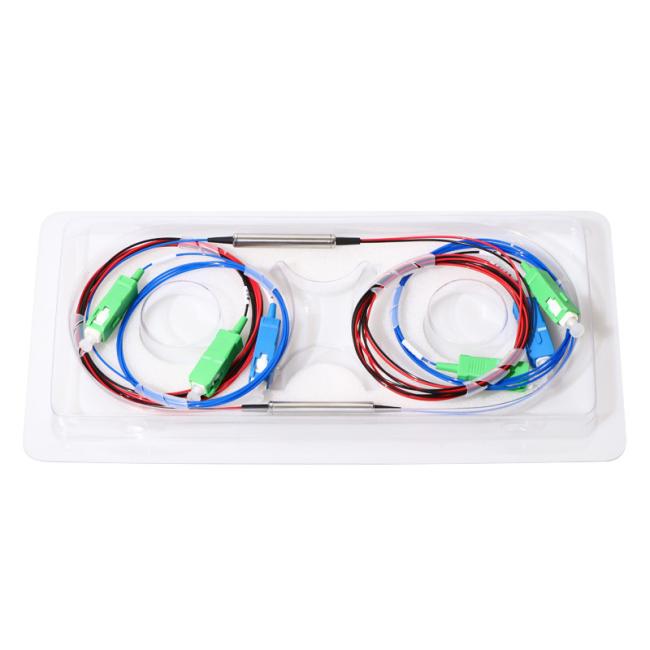

Mini FWDM 1 in 2 out optic fiber plc splitter Filter WDM for 1310 1490 1550 nm

Description

♥ FWDM Optical Filter 3 Channel FC SC APC UPC FWDM 1310nm 1490nm 1550nm Optical Filter

♥ Filter WDM module extensively used in optical amplifiers, WDM networks.

♥The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range.

♥ It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.

♥ It works on 1310nm/1490nm, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get together.

Applications

System Monitoring

Transmitters and Fiber

Fiber optical amplifier

CATV System

FTTH System

Features&Advantage:

Wide Wavelength Range

Low Insertion Loss

High Channel Isolation

High stability and reliability

Specification

Parameters	Unit	Specifications
1	Operating Wavelength Range	nm	1260 ~ 1620		1520 ~ 1570
2	Channel Spacing	---	20nm		100GHz
3	Channel Passband (@-0.5dB bandwidth)	nm	IUT ± 6.5		UT ± 0.125
4	Channel Quantity	---	C4CH	C8CH	C4CH	C8CH
5	Max. Pass Band Ripple	dB	<0.35		<0.4
6	Max. Channel Insertion Loss	dB	≤1.8	≤3.0	≤2.0	≤3.2
7	Min. Adjacent Channel Isolation	dB	>30		>25
8	Min. Non-Adjacent Channel Isolation	dB	>45		>35
9	Min. Express Channel Isolation		>13		>12
10	Min. Return Loss	dB	≥45
11	Max. PDL	dB	<0.1	<0.1	<0.20	<0.30
12	Insertion Loss Temperature Sensitivity	dB/℃	<0.005
13	Wavelength Temperature Shifting	nm/℃	<0.002
14	Max. Power Handling	mW	300
15	Directivity	dB	≥50
16	Operation Temperature Range	℃	-40 to +80
17	Storage Temperature Range	℃	-40 to +85
18	Fiber Jacket & Fiber Length	cm	Customize
19	Package Dimensions – 1	mm	100 * 80 * 10 or Customize
20	Package Dimensions – 2	mm	LGX Compatible
21	Package Dimensions – 3	mm	19” 1U Rack Mounted
22	Connector Type	--	SC/LC/FC or Customize
23	Fiber Type and Jacket Color		G.652D / G.657 A1 (or Customize)
