36 Fiber Waterproof PE Jacket GYTC8S Optical Wire Cable
36 Fiber Waterproof PE Jacket GYTC8S Optical Wire Cable
Figure 8 with steel tape Cable GYTC8S self-supporting cable Waterproof Fiber optic Cable
Description

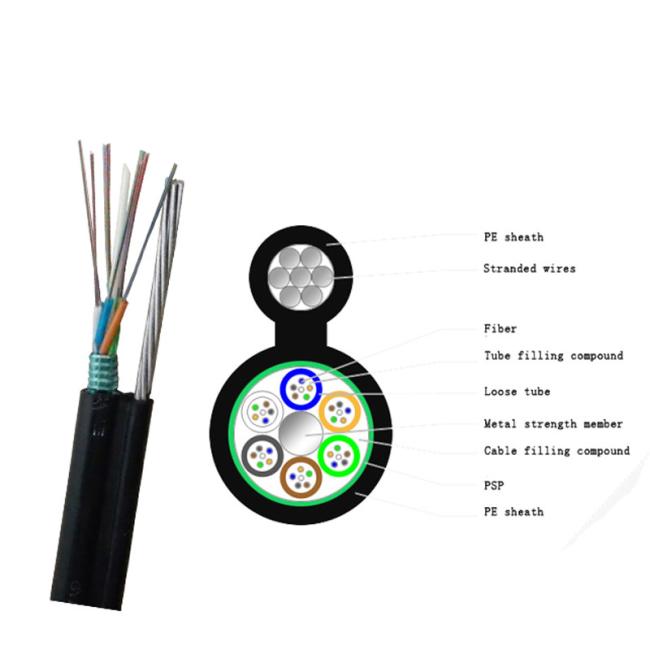

GYTC8S fiber Optic Cable is a typical self-supporting outdoor fiber optical cable. The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. It's suitable for installation in aerial, used for long distance and LAN communication systems.
Features
1, Small cable diameter, cross section shows figure 8
2, Self-supporting stranded wires, easily to install
3, Low dispersion and attenuation
4, Excellent mechanical and environmental performance
5, Water blocking system to improve the water-proof ability
6, Steel-wire strength member ensures tensile strength
7, Corrugated steel tape armored and PE outer sheath improve crush resistance
8, Outdoor aerial application
9, Used for long-haul communication Used for LAN communication,Subscriber network systems,Junction communication systems,CATV & Computer networks system
Application
Usable in Duct / Aerial
Dimensional Characteristics
| Designation | Max. number | Steel wire/ stand | Stranded | Nominal cable | Nominal cable |
| Of fibers per tube | Diameter (mm) | units | diameter (mm) | weight (kg/km) | |
| GYTC8Sfiber Optic Cable 2-36 | 6 | 2.3 | 6 | 11.6X25.5 | 270 |
| GYTC8Sfiber Optic Cable 38-72 | 12 | 2.3 | 6 | 13.2X28.5 | 310 |
Technical Parameters
| Cable Count | Out sheath Diameter |
Weight |
Minimum allowable Tensile Strength |
minimum allowable Crush Load |
Minimum Bending Radius |
Storage temperature |
|||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
| 6 | 3.0×9.8 | 54.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 12 | 3.0×9.8 | 54.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 24 | 7.0×14.5 | 210.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 36 | 7.0×14.5 | 210.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 42 | 7.0×14.5 | 210.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 48 | 7.0×15.5 | 210.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 72 | 7.0×15.5 | 245.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
| 144 | 7.0×15.5 | 285.0 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 |
