19" 1U 2U Fiber Optical 1x64 Rack Mount Patch Panels
Price:
Negotiable
MOQ:
20pcs
Delivery Time:
4-8 days
Brand:
CY COM
Product Description

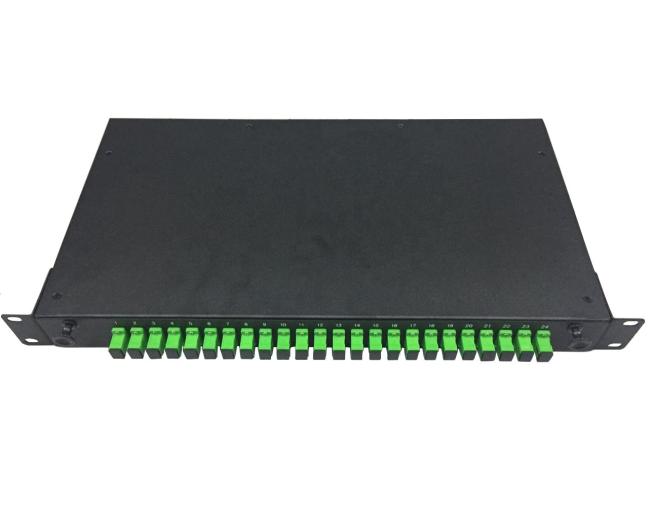

19" 1U 2U Fiber Optical 1x64 Rack Mount Patch Panels
19" 1U 2U Fiber Optical PLC Splitter 1x8 1x16 1x32 1x64 Patch panel with SC connector Rack mounted
Product Description

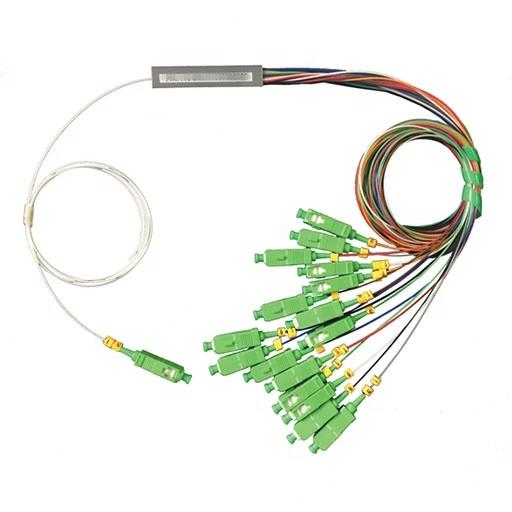

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
With years of experience,CO-NET provides whole series of 1xN and 2xN splitters which are with good quality and competetive price.
Features
* Low insertion loss, Low PDL and High reliability
* High return loss and Good repeatability
* Wide wavelength range
* High return loss and Good repeatability
* Wide wavelength range
* Excellent channel-to-channel uniformity
Application
* LAN, WAN and Metro Networks
* FTTH project & FTTX Deployments
* CATV System
* GPON, EPON
* Fiber Optic Test Equipment
* Data-base Transmit Broadband Net
* FTTH project & FTTX Deployments
* CATV System
* GPON, EPON
* Fiber Optic Test Equipment
* Data-base Transmit Broadband Net
Specifications
|
Item
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
|
Fiber Type
|
G.657.A
|
|||||
|
Working Wavelength
|
1260nm~1650nm
|
|||||
|
Standard Insertion Loss (dB)
|
≤4.2
|
≤7.6
|
≤10.7
|
≤14.0
|
≤17.2
|
≤20.8
|
|
Uniformity (dB)
|
≤0.6
|
≤0.8
|
≤0.8
|
≤1.0
|
≤1.5
|
≤2.0
|
|
PDL (dB)
|
≤0.2
|
≤0.2
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.4
|
|
Wavelength Dependent Loss(dB)
|
≤0.6
|
≤0.8
|
≤0.8
|
≤1.0
|
≤1.5
|
≤2.0
|
|
Return Loss (dB)
|
UPC≥50,APC≥55
|
|||||
|
Directivity (dB)
|
≥55
|
|||||
|
Operating Temp. Gange
|
-40℃~ +85℃
|
|||||
|
Item
|
2x2
|
2x4
|
2x8
|
2x16
|
2x32
|
2x64
|
|
Fiber Type
|
G.657.A
|
|||||
|
Working Wavelength
|
1260nm~1650nm
|
|||||
|
Standard Insertion Loss (dB)
|
≤4.4
|
≤8.0
|
≤11.0
|
≤14.6
|
≤17.8
|
≤21.0
|
|
Uniformity (dB)
|
≤0.8
|
≤1.0
|
≤1.2
|
≤1.5
|
≤1.8
|
≤2.0
|
|
PDL (dB)
|
≤0.2
|
≤0.2
|
≤0.3
|
≤0.3
|
≤0.3
|
≤0.4
|
|
Wavelength Dependent Loss(dB)
|
≤0.8
|
≤1.0
|
≤1.2
|
≤1.5
|
≤1.8
|
≤2.0
|
|
Return Loss (dB)
|
UPC≥50,APC≥55
|
|||||
|
Directivity (dB)
|
≥55
|
|||||
|
Operating Temp. Gange
|
-40℃~ +85℃
|
|||||
|
Encapsulation Size
|
||||||
|
Item
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
|
Length*Width*Height(mm)
|
482*160*44.5
|
482*160*89
|
||||
|
Item
|
2x2
|
2x4
|
2x8
|
2x16
|
2x32
|
2x64
|
|
Length*Width*Height(mm)
|
482*160*44.5
|
482*160*89
|
||||
