FTTH 96 Port Metal 19 Inch Fiber Optic Terminal Box
FTTH 96 Port Metal 19 Inch Fiber Optic Terminal Box
24 48 96 ports Patch panel Metal Fiber Optic Terminal Box 19 Rack Cabinet ODF Rack Mount
Introduction:
19Inch Fiber Optic Patch Panel is a standard distribution box which can be installed in the cabinet.There are 3 types available-1. Drawer Type 2. Rotary Type 3. Stick Type. It is mainly used in the CATV, telecommunication equipment room and network equipment room.
Features:
Standard size, light weight and reasonable structure
Compact design for space saving
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface(FC,SC,ST Adapter)
Front access panel design for easy operation
Suitable for 19’’ standard optic distribution Cabinets
Easy access with Telescopic rail pull-out system.
Insulating fiber metal components from fiber-end shells and conveniently leading out grounding wires.
Providing spaces for placing fiber terminals and redundant fibers, thus making installation more convenient.
6-port or 12-port long adapter plate, FC, SC, ST, LC connector are applied.
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV/LAN/WAN
Specification:
| Type | Drawer |
| Dimension(mm) | 483*280*1U/2U/3U/4U |
| Suitable adapter | FC/LC/SC/ST,APC/UPC/PC |
| Fiber Capacity(cores) | 12,24,48,96,144(panel plate can be changed) |
| Material | Cold-roll steel sheet |
Order information:
| Panel port | Dimension(mm) | Max capacity(cores) | Remark |
| 12 SC/FC/ST | 430*250*1U | 12 | Cold rolled steel sheet,with electrostatic spraying,suitable for FC,SC,ST,LC adapters. |
| 24 SC/FC/ST | 24 | ||
| 24 LC | 48 | ||
| 48 SC/FC/ST | 430*250*2U | 48 |

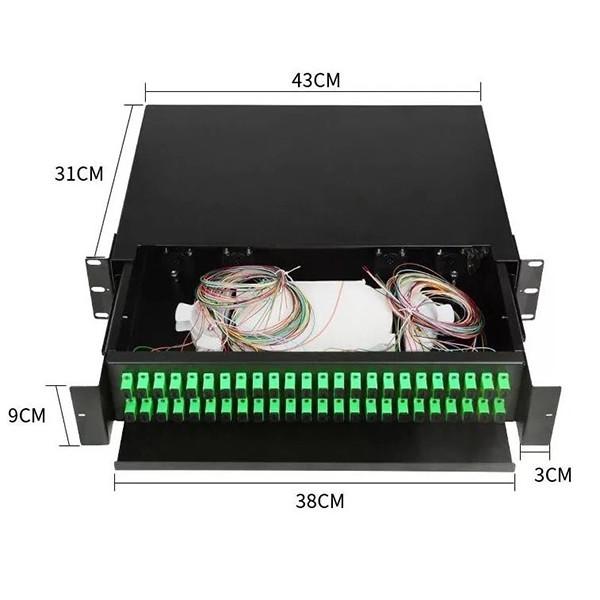

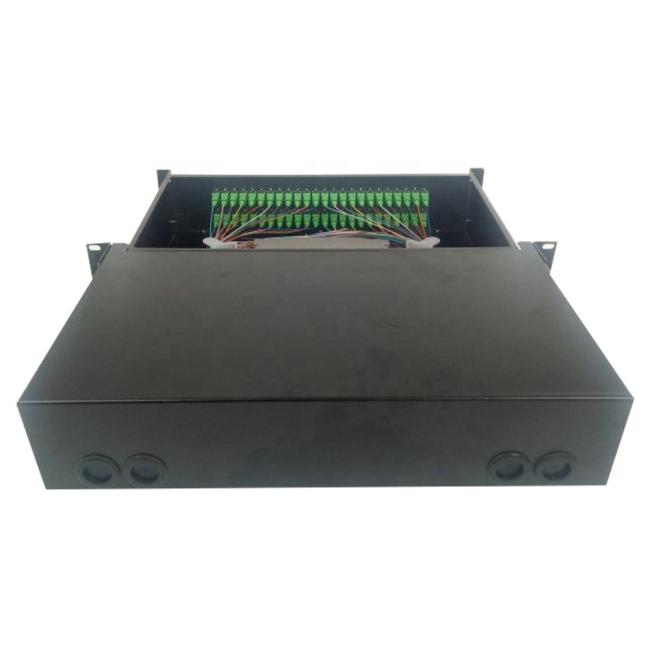

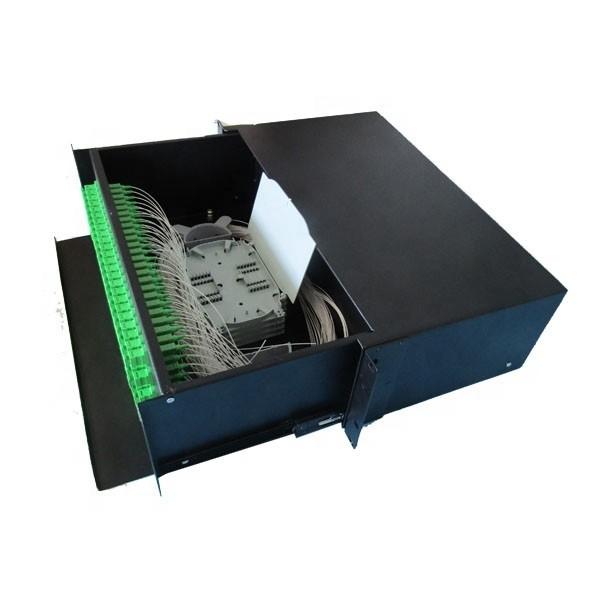

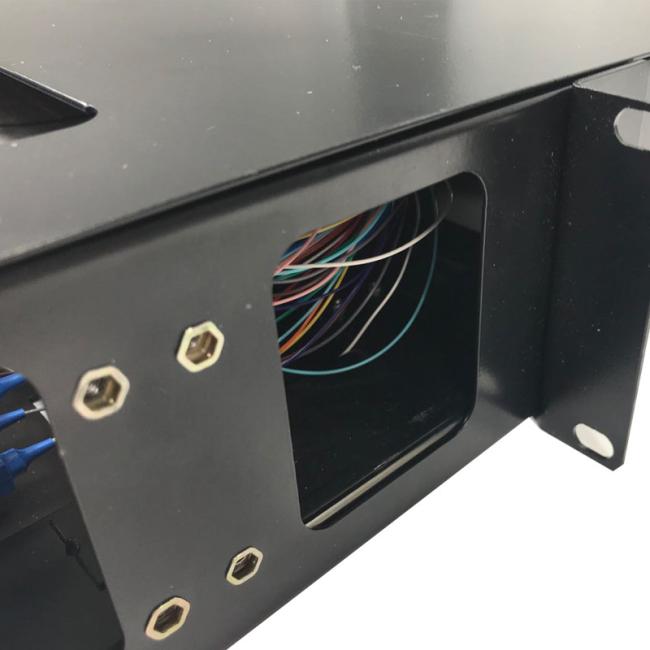

Product Show
