Outdoor GYXTW Fiber Optical Cable , Armoured Loose Tube Cable
Price:
Negotiable
MOQ:
2000 Meter/Meters
Delivery Time:
in 3-5 days
Brand:
CY
Product Description

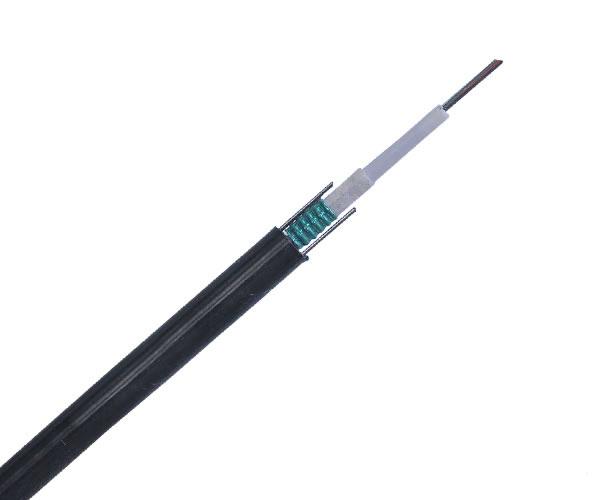

Outdoor GYXTW Fiber Optical Cable , Armoured Loose Tube Cable
Features:

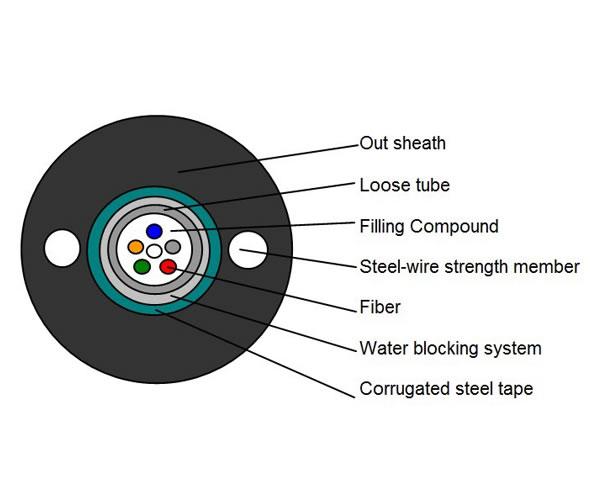

- Steel-wire parallel member.filler protect tube fiber steel tape amored.
- Excellent mechanical and environmental performance.
- Compact structure.light weight.
- Can be installed conveniently and operated simply.
- Fiber count is 2-144
Application:
1. Adopted to Outdoor distribution
2. Laying methods: Conduit, Aerial
3. Long distance and local area network communication
Specification:
| Fiber Count | Max Outer Diameter | Nominal weight | Max.tensile strength(N) | Min.Bending Radius(mm) | Max.Crush Resistance | Temperature | |||
| (Core) | (MM) | (KG) | Short-term | Long-term | Dynamic | Static | (N/100mm) | °C | |
| 2 | 8.3 | 66 | 1500 | 600 | 20D | 10D | 3000 | -20~70 | |
| 4 | 8.3 | 66 | 1500 | 600 | 20D | 10D | 3000 | -20~70 | |
| 6 | 8.3 | 66 | 1500 | 600 | 20D | 10D | 3000 | -20~70 | |
| 8 | 8.3 | 66 | 1500 | 600 | 20D | 10D | 3000 | -20~70 | |
| 12 | 9 | 82 | 1500 | 600 | 20D | 10D | 3000 | -20~70 | |
| 24 | 9 | 82 | 1500 | 600 | 20D | 10D | 3000 | -20~70 | |
Order Information:
1 Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
2 Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
3 Fiber count: 2-144
4 Cable length: 2000M/Drum( customized, MOQ=2000M)
5 Cable Jacket: Outer sheath Black
