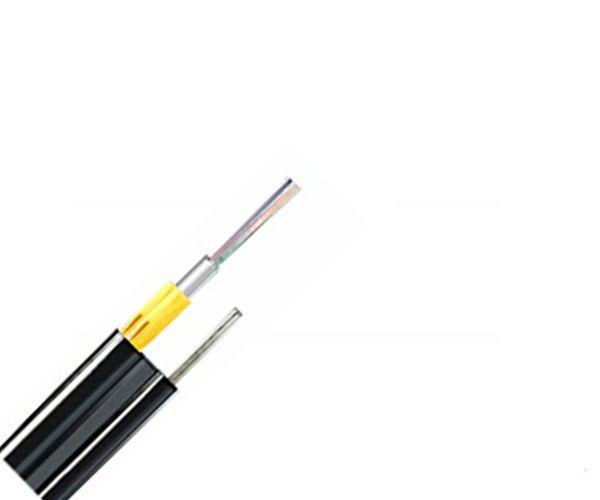

Figure 8 Fiber Optical Cable GYTC8Y High Tensile Strength For CATV
Price:
Negotiable
MOQ:
2000 Meter/Meters
Delivery Time:
in 3-5 days
Brand:
CY
Product Description
Figure 8 Fiber Optical Cable GYTC8Y High Tensile Strength For CATV
Features:
- Central loose tubes with jelly compound inside to protect the cladding fiber
- Corrugated steel tape laminated with plastci at both sides bonding to PE sheath

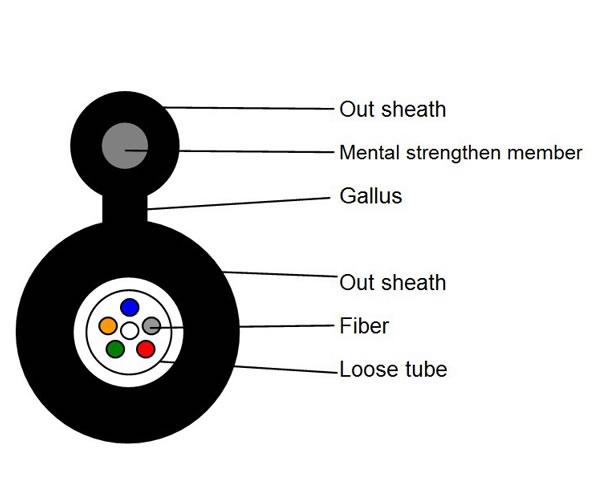

- The cross-section in fig8 shape
- Incorporates stranded steel messenger wire
- Messenger wire as self-supporting part, high tensile strength, easy for erection.
Application:
1. Long-distance communication, local trunk line, CATV & computer networks system
2. Laying modes: Self-support aerial installation
Specification:
| Cable count | Out sheath Diameter |
Nominal weight | Max.tensile strength(N) | Min.Bending Radius(mm) | Max.Crush Resistance(N/100mm) | Temperature | |||
| (Core) | (MM) | (KG) | Short-term | Long-term | Dynamic | Static | Short-term | Long-term | °C |
| 2 | 3.2x6.5 | 54 | 1500 | 600 | 20D | 10D | 1500 | 600 | -40~60 |
| 4 | 3.2x6.5 | 54 | 1500 | 600 | 20D | 10D | 1500 | 600 | -40~60 |
| 6 | 3.2x6.5 | 54 | 1500 | 600 | 20D | 10D | 1500 | 600 | -40~60 |
| 8 | 3.2x6.5 | 54 | 1500 | 600 | 20D | 10D | 1500 | 600 | -40~60 |
| 12 | 3.2x6.5 | 54 | 1500 | 600 | 20D | 10D | 1500 | 600 | -40~60 |
| 24 | 3.2x6.5 | 54 | 1500 | 600 | 20D | 10D | 1500 | 600 | -40~60 |
Order Information:
1 Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
2 Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
3 Fiber count: 6-144
4 Cable length: 2000M/Drum( customized, MOQ=2000M)
5 Cable Jacket: Outer sheath Black
