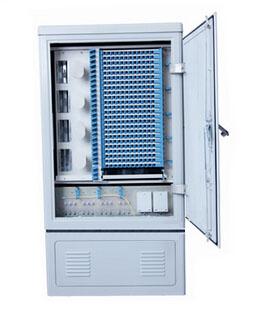

Fiber Optic Cross Connection Cabinet Stainless Steel 288 Cores
Fiber Optic Cross Connection Cabinet Stainless Steel 288 Cores
Details:
Fiber optic cross connect cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access network.
Features:
High intensity and anti-erosion performance
Able to counter abrupt climate change and extreme environment
Capacity can be flexibly customized as required
Installation is quick and convenient
Built-in direct splice unit is capable for providing direct connection function.
Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
With secure and reliable fastening and grounding protection devices for the optic fiber
Applicable to strap-shaped and non-strap shaped fibers
Material:
SMC, Cold-rolled steel or stainless steel
Technical Parameters:
Nominal work wave-length: 850nm, 1310nm, 1550nm
Operating temperature: -5℃-+40℃
Storage temperature: -40℃ +70℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure: 70~106 KPa
Insertion loss: ≤0.2dB
Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC)
Isolation resistance:≥1000MΩ/500V(DC)
Durability:＞1000 times
Anti-voltage strength: ≥3000V(DC)/1min
| Type | Dimension(mm) | Max capacity cores | Remark |
| GPZ/RM-SC12 | 480*250*1U | 12 |
The body is made of cold rolled steel sheet, with electrostatic spraying. We can install adaptors for you, available for FC, ST, SC, LC .
|
| GPZ/RM-SC24 | 480*250*1U | 24 | |
| GPZ/RM-SC48 | 480*250*2U | 48 | |
| GPZ/ RM-FC12 | 480*250*1U | 12 | |
| GPZ/ RM-FC24 | 480*250*1U | 24 | |
| GPZ/ RM-FC48 | 480*250*2U | 48 | |
| GPZ/ RM-ST12 | 480*250*1U | 24 | |
| GPZ/ RM-ST24 | 480*250*1U |
24 |
Specification:
Model: ODF-OC288
Max. capacity of fiber: 288
Dimension: 143x75x30cm
Weight: 50kg (not contain splice trays and wooden carton.)
