PVC Armored Fiber Optic Jumper SC-FC Singlemode G657A1 9/125 Simplex Blue Cable
Price:
USD3.0-4.5/PCS
MOQ:
20pcs
Delivery Time:
3-15 days
Brand:
CY COM
Product Description

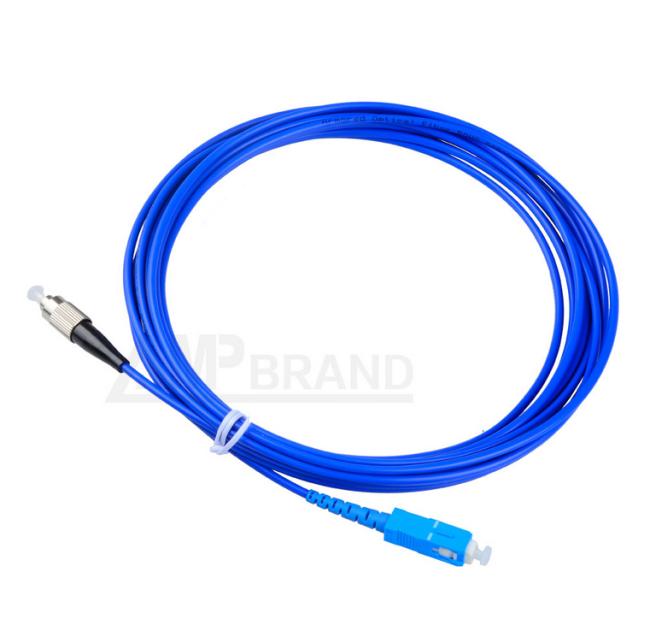

PVC Armored Fiber Optic Jumper SC-FC singlemode G657A1 9/125 simplex blue cable
Specification:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Applications:
♦All applications which traditional patch-cords are used for FTTH
♦Outdoors military use
♦Temperature detector
♦Subway
♦Power plant
♦Duct layout
Order information:
♦For example:FC/UPC-FC/UPC-SM-DX-3.0-5mtrs-LSZH-Armored
♦Type: SX/DX optional
♦Ferrule type: APC/PC
♦Diameter: 0.9, 2.0, 3.0mm
♦Length: 1, 2, 3 to 120m
♦Fiber: SM/OM1/OM2/OM3/OM4
♦Material of jacket: PVC/LSZH/OFNR
