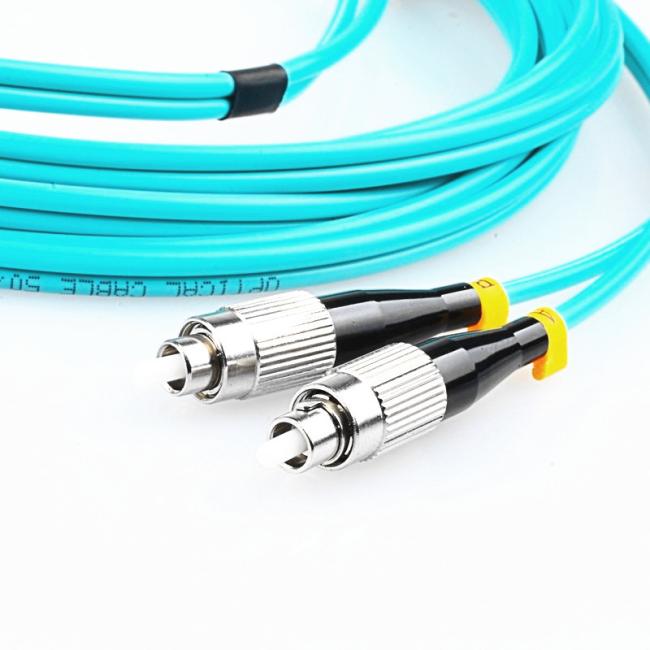

OM3 aqua duplex optical jumper FC/UPC corning fiber LSZH cable jacket
Price:
USD3.0-4.5/PCS
MOQ:
20pcs
Delivery Time:
3-15 days
Brand:
CY COM
Product Description

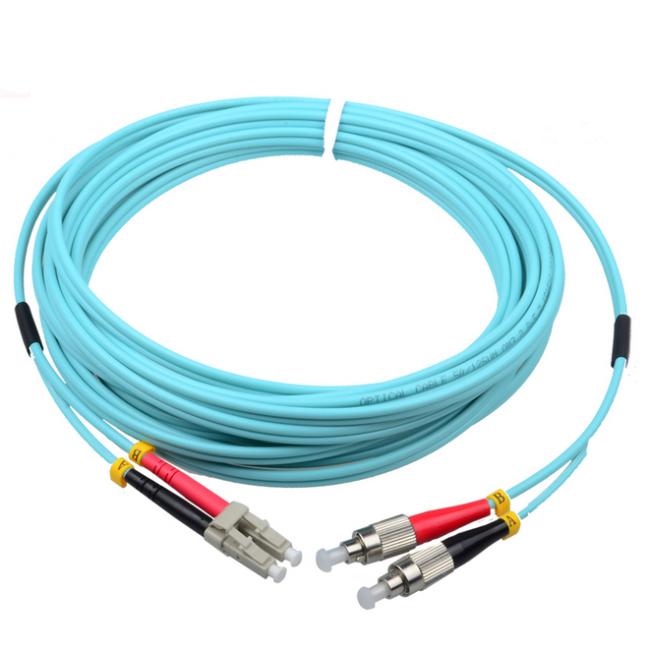

OM3 aqua duplex optical jumper,FC/UPC-LC/UPC, corning fiber,LSZH cable jacket
►Features:
- Low insertion loss, high return loss
- Small, light, high dense connection
- Standard exact plastic material
- High credibility and stability
- Good in repeatability and exchangeability
►Application:
- Gigabit Ethernet
- Active device termination
- Telecommunication networks
- Video
- Multimedia
- Premise installations
- Local area networks
- FTTH and FTTX applications
- CATV
► Material of patch cord:
- Dust caps: LDPE, transparent (RoHS)
- Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
- Inner frame: PBT, white (RoHS)
- Ferrule: Zirconium oxide ceramic material, white (RoHS)
- Ferrule’s handle: copper (C3602), nickelage (RoHS)
- Mechanical spring: stainless steel (RoHS)
- Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
- Snap ring: aluminium alloy 6063 (RoHS)
- Ring: copper alloy (HPD62), nickelage (RoHS)
- Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
- Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR and more
►Specification:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
►Order information:
- Type: SX/DX optional
- Ferrule end face: APC/UPC/PC
- Diameter: 0.9, 2.0, 3.0mm
- Length:1m, 2m, 3m to 120m
- Fiber: SM/OM1/OM2/OM3/OM4
- Material of jacket: PVC/LSZH/OFNR
