Outdoor Fiber Optical Cable 2-24 Cores GYXTC8S Figure 8 Central Tube
Price:
USD 0.0625-1.25/Mtr
MOQ:
1000 Meters
Delivery Time:
in 4-6 days
Brand:
CY
Product Description

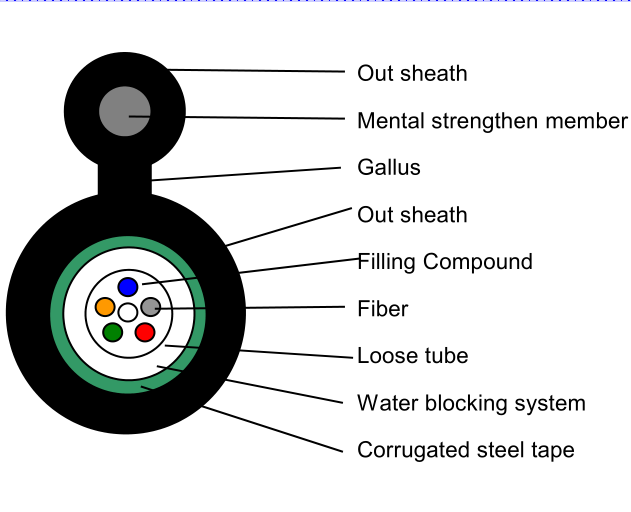

2-24 cores,GYXTC8S Figure 8 self-supporting central tube outdoor cable
Features:
- Stainless steel or gaivanized steel self-supporting.
- Excellet mechanical and environmental performance.
- Good ultra violet radiation resestant.
Application:
- Adopted to Outdoor distribution.
- Suitable for aerial duct ,buried method(self-supporting method)
- Long distance and local area network communication.
Specification:
| Technical Parameters: | ||||||||||
| Cable Count | Out sheath Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| (mm) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | ||
| 6 | 3.0×9.8 | 54.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 | |
| 8 | 3.0×9.8 | 54.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 | |
| 12 | 3.0×9.8 | 54.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 | |
| 24 | 3.0×9.8 | 54.00 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40+60 | |
Order Information:
- Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
- Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
- Fiber count: 2-24
- Cable length: 2000M/Drum( customized, MOQ=2000M)
- Cable Jacket: Outer sheath Black
