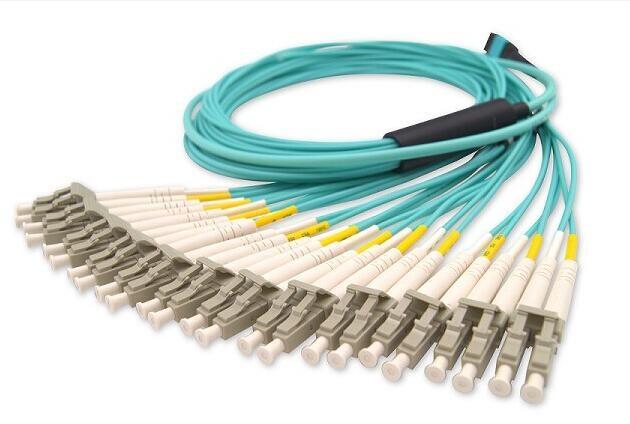

24f Male Female Om3 Fanout Breakout Harnesses Cable MPO To LC Patch Cord
MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
0.35dB IL, MTP (MPO) to MTP(MPO) connector and 3.0mm Plenum (OFNP) bunch cable is designed for 40G/100G direct connection and high-density data center applications.
APPLICATION
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
FEATURES
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
PRODUCT PARAMETERS
| Performance Level | Standard | Elite | ||||
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.75 | ≥60 | ||||
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 48F/PC | ≤0.50 | ≥20 | ||||
| LC/SC/FC/ST | SM | APC | ≤0.30 | ≥60 | ≤0.10 | ≥60 |
| UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 | ||
| MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 | |
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
| Mechanical Properties | |||
| Item | Criteria | Conformance | |
| △IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 |
| △IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 |
| Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) | ||
| Min Bend Radius (Static ) | 15*OD (Cable Diameter) | ||
| Environment Conditions | ||
| Item | Criteria | Conformance |
| Operation Temperature | -40~60°C | IEC 61753-1 |
| Storage Temperature | -45~85°C | |
