12 / 24 Fiber Female Optic Cable MTP MPO Loopback 3.0mm Cable Diameter
12 Fiber 24 Fiber Female Fiber Optic Cable MTP MPO Loopback 3.0mm Cable Diameter
Introduction

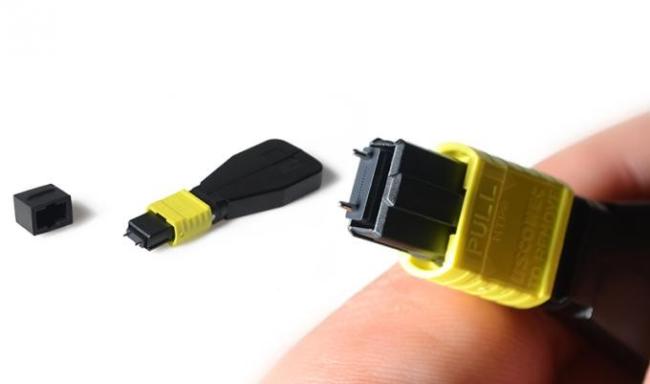

MTP / MPO OM3 Fiber Optic Loopback Tester is typically used for test and measurement procedures in networking environments.Features push-pull tab for easy disconnect. A dust cap is included for protection during storage.The device is ideal for a multitude of applications that require signal looping in a MTP / MPO form factor.
Application
Optical System Access network
Storage area networking fiber channel
High density architectures
Data communication network
Features and Benefits
MTP / MPO OM3 Loopback Tester
Protective dust cover included for protection during storage
4-inch overall length
Pin config: 1 -12, 2-11, 3-10, 4-9, 5-8, 6-7
Push-pull tab for quick disconnect
Connector Performance Specifications
| Model | SM | MM |
| Connector Fiber Count | 8, 12, 24 core | |
| Polish | PC, APC | |
| Housing Color |
Standard (green), Elite (Yellow) |
Standard(Beige) Elite(Auqa) |
| Insertion Loss Standard type | less than 0.7dB | Less than 0.5dB |
| Insertion loss Elite type | Less than 0.35dB | Less than 0.3dB |
| Return Loss | PC >50dB, APC>60dB | >30dB |
| Durability (500 matings) | less than 0.2dB | |
| Test Eavelength | 1310/1550nm | 850/1300nm |
Fiber Cable Perfomance Specifications
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 8, 12, 24, 48, 72, 96, 144 cores |
| Cable Diameter | 3.0mm 5.5mm or customized |
| Jacket Color | Yeloow, Orange, Aqua, Purple |
| Jacket Material | OFNR, OFNP, PVC, LSZH |
| Tensile Strength | 500N |
| Operating Temperature | -20 to 70 ℃ |
| Storage Temperature | -40 to 75℃ |
