ISO RoHS Plastic Simplex SC/PC Multimode Fiber Optic Adapter beige color
Price:
usd0.074-0.096/pc
MOQ:
100pcs
Delivery Time:
in 3-5 days
Brand:
CY COM
Product Description

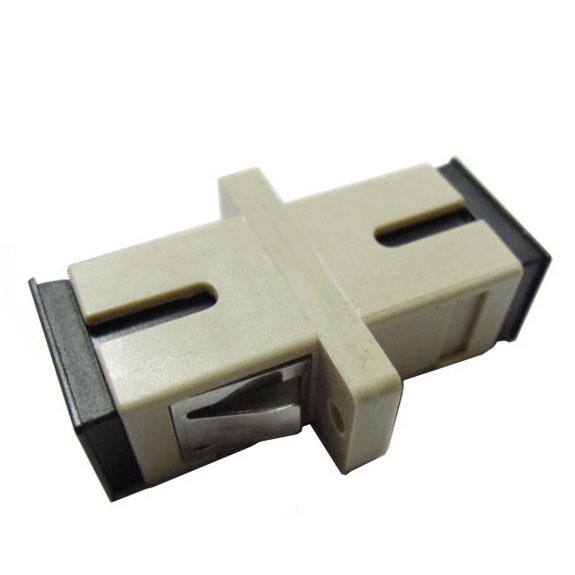

Simplex SC/PC Multimode Fiber Optic Adapter beige color
SC adapters are flange type, single mode adapters are with zirconia sleeve while multimode fiber adapters are with bronze sleeve.
Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC, APC, UPC optional
Simplex / Duplex
Specification:
Insertion loss: < 0.2dB
Repeatability: < 0.2dB
Exchangeability:< 0.2dB
Retention force: 200-600G
Durability Time:>1000
Temperature range: -40 - 80 degree Celsius
|
|
| Housing Material: Synthetic resin or alloy, with high precisemechanical dimensions, good compatibility; | |
| Working Wavelength: 1200~1600nm | |
| Working Condition: -40°C to +75°C; | |
| Durability: less than 500 times repeated insert and pull out , insertion loss change≤0.20dB; | |
| Repeatability: No more than 0.2dB ; | |
| The adapters comply with the standard of NTT/Telcordia/IEC/TIA/EIA. | |
| Mode: SM/APC Green SM/PC Blue MM/PC Beige MM/PC Light Green |
Application:
1.Telecommunication
2.Computer networks
3.CATV networks
4.Active device termination
5.Instrumentation
