Dental Sterilization Instrument Closed Suction System With UV Light And Plasma With FDA Certificate 110V Or 220V Use
Aerosol Suction Machine Dental Suction Unit
Aerosol Suction Machine Dental Suction Unit Features:
|
Power |
Input/ AC110---AC220V Output/DC24C |
| Rated Power | 250W Max |
| Maximum air volume | 200m³/H |
| Maximum wind pressure | 2000Pa |
| (DB) Noise | <55DB |
| Filtration and disinfection methods | Quadruple filtration (Primary effect filtration,medium,efficiency filtration,high efficiency filtration,activated carbon) can be replaced separately ,plasma sterilization |
| Speed Mode | Potentiometer knob speed regulation |
| Power Configuration | Triple safety protection (leakage protection plug-on cable,switch insurance,motherboard overcurrent protection) |
| Slub tube size | Diameter 50MM |
| Body Color | White |
| Body Size |
432*235*500mm |
| Color | Silver |
| OEM | > 30 sets |
Aerosol Suction Machine Dental Suction Unit
Aerosol Suction Machine Dental Suction Unit
Component:
| 1 | Pulley | 9 | Section 4 Air Pipe |
| 2 | Cabinet Lower Shell | 10 | Section 3 Joint |
| 3 | The Whole Filter Element | 11 | Section 3 Air Pipe |
| 4 | Box Upper Cover | 12 | Section 2 Joint |
| 5 | Box Interface | 13 | Section 2 Air Pipe |
| 6 | Section 1 Trachea | 14 | Handle |
| 7 | Section 1 Joint | 15 | Circuit Board |
| 8 | Suction Hood | 16 | Suction Machine |
Aerosol Suction Machine Dental Suction Unit
Working Principle:
It working principle is produced by collecting oral treatment through the mouth. The droplets, bacterial aerosols and dust, etc. The dust filter filters the particulate matter, and then passes through the high efficiency filter again Filtered, then sterilized by activated carbon, and then discharged through the motor Gas, and then remove the odor by plasma, and finally discharge the gas. To ensure the cleanliness of the ambient gas in the clinic
Extraoral Suction Unit Suitable Location
It can use at these places as bellow:
1.Oral clinic for gas absorption
2.Traditional Chinese medicine moxibustion and other health care to absorb smoke
3.Laboratory some specific industrial sites, such as pharmaceutical, food, beverage and other production and processing sites

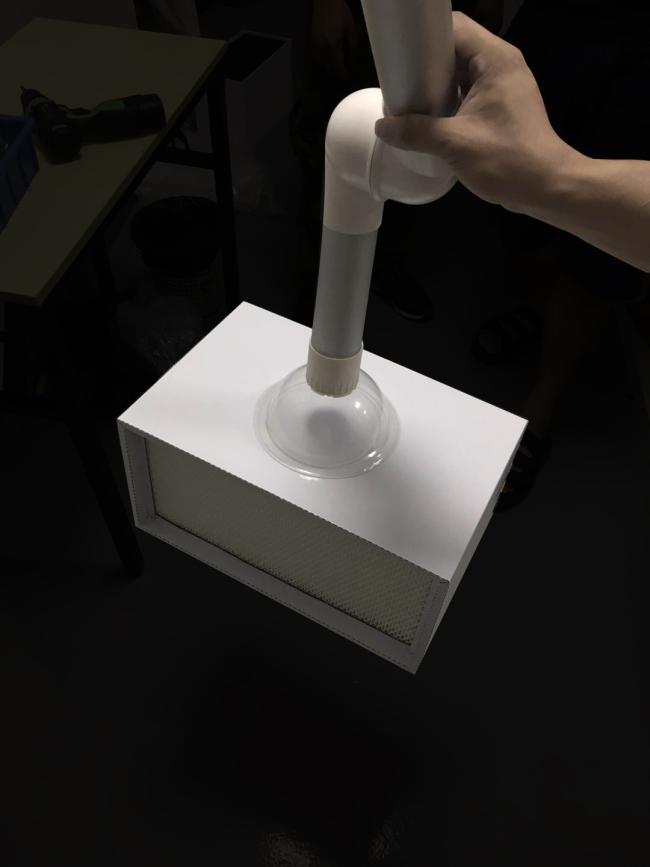

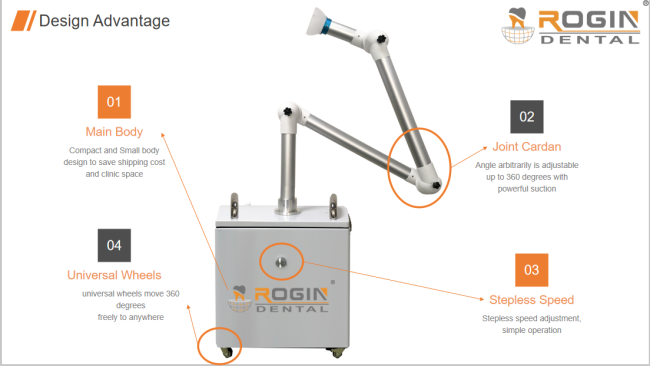

Extraoral Suction Unit Pictures:
.png)

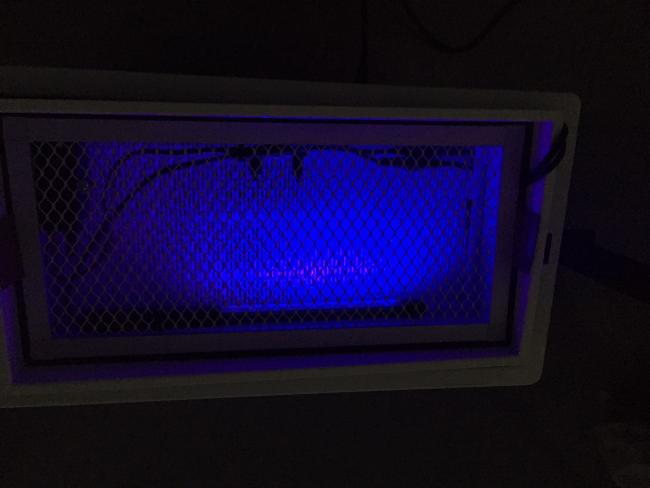

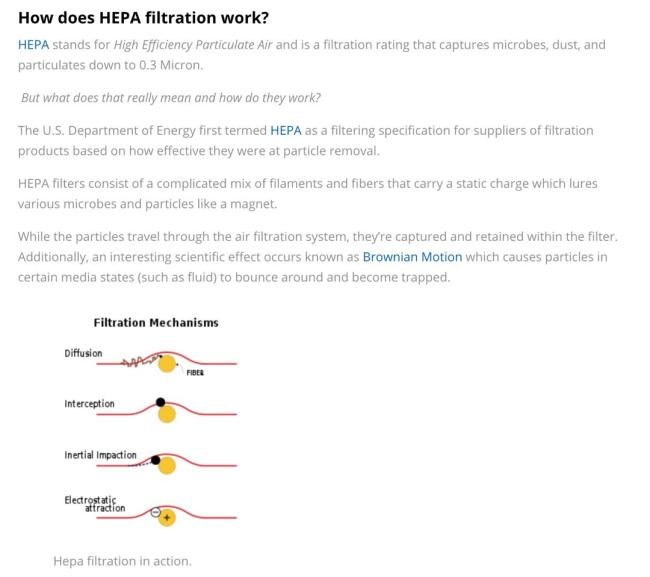

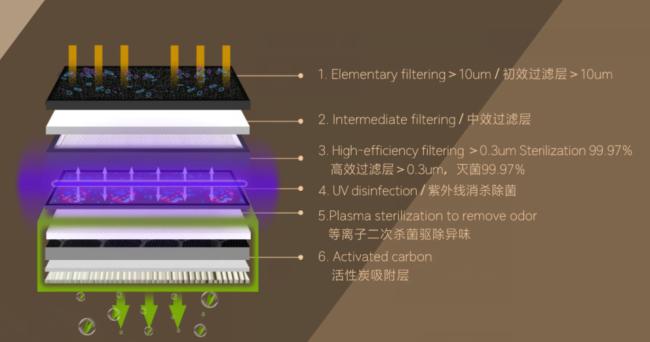

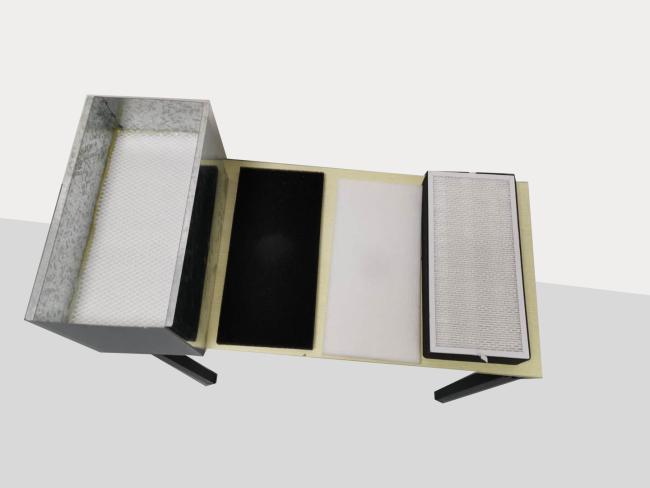

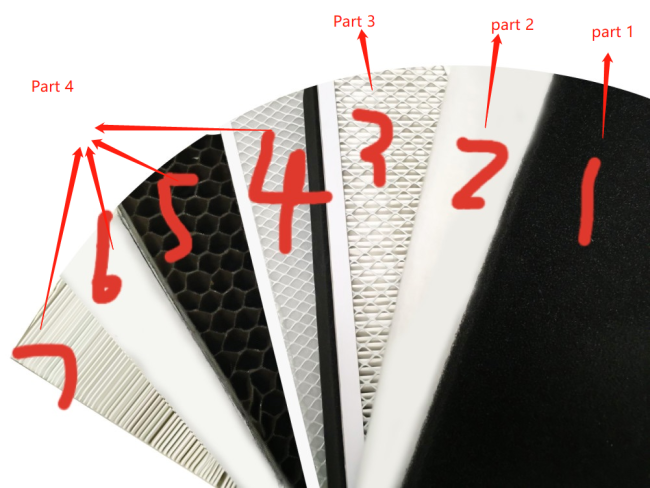

Four-layer filtration + UV light + plasma odor removal (HEPA 13, >3um 99.97% filtration)
01 It is effective protect against Virus

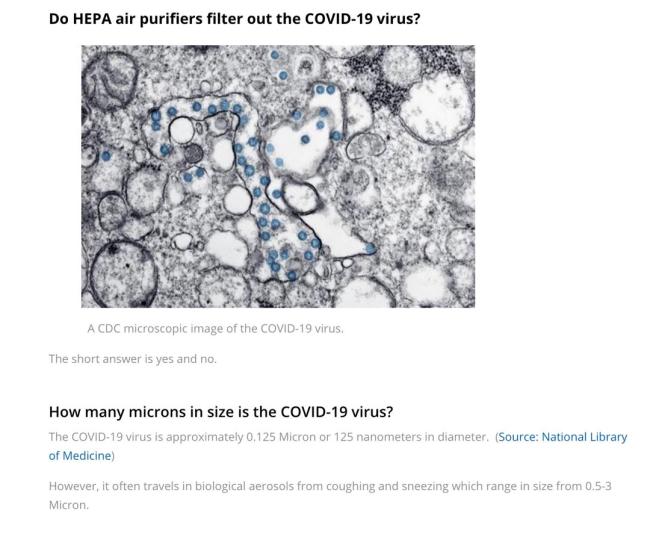

The virus is approximately 0.125 Micron or 125 nanometers in diameter. However, it often travels in biological aerosols from coughing and sneezing which range in size from 0.5-3 Micron.
02 More effective than face masks

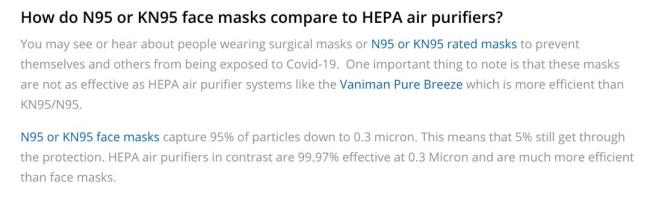

N95 or KN95 face masks capture 95% of particles down to 0.3 micron. This means that 5% still get through the protection. HEPA air purifiers in contrast are 99.97% effective at 0.3 Micron and are much more efficient than face masks.
