3G Portable Cell Phone Signal Jammer / Blocker EST-808HA , 2110 - 2170 MHz

 3G Portable Cell Phone Signal Jammer / Blocker EST-808HA , 2110 - 2170 MHz

1.Quick Details

Model Number: EST-808HA

Weight: 180g

Dimension: 100 (L)×57 (W)×22(H)mm not include antenna

2.Tx Frequency

CDMA/GSM:860-970 MHz

3G:2110-2170 MHz

DCS/PHS:1805-1990 MHz

Available system

Include analog (AMPS,TACS,NMT) and digital (GPRS,GSM,

DCS,CDMA,PDC,TDMA,PHS,PCS,IDEN,W-CDMA,UMTS)

Single output power

+29dBm / 800mW

Power input

AC110V-240V

Power output

DC8V 1500mAh

Jamming range

Radius 1-6M

【the Cellular signal must ≤-85dBm in the location】

 The jamming radius still depends on the strength signal in given area

 Safety regulation

  AC Adapter UL (E190582)

  CSA (LR112971 Level 3)

 Dimension

  100 (L)×57 (W)×22(H)mm not include antenna

 Weight

  180g

Temperature

-40 to +55℃

Relative humility

≤90%(RH)

Air pressure

86~106kPa

3.Application:

1. Conference room, auditoriums, law court, library, exam room, school, cinema, theater, museum, hospital etc.
2. Places where using mobile phones is prohibited such as Service Station, Security Services, Military Units, Border Patrol and Drug Enforcement, Customs, etc.

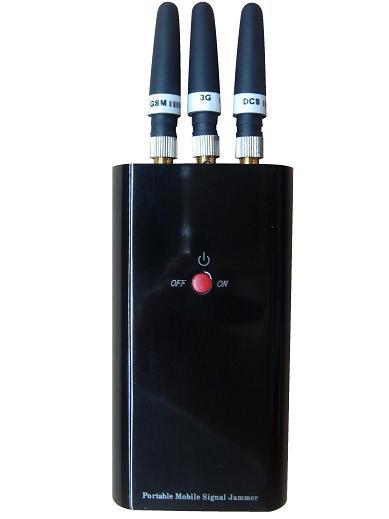

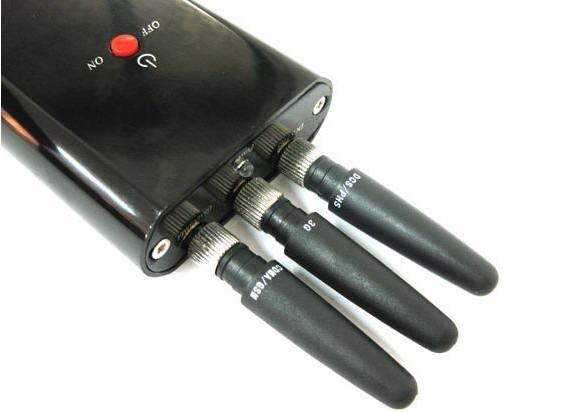

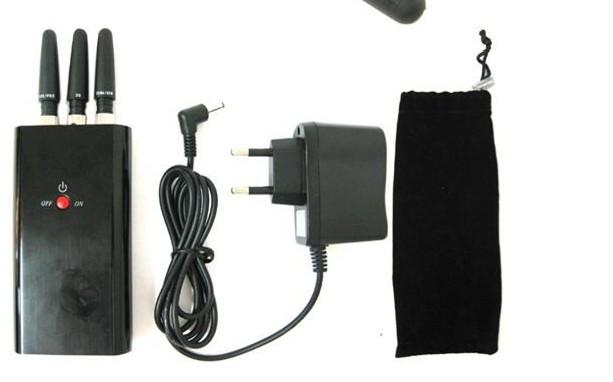

4.picture
