Intelligent Wifi GSM Signal Booster Mobile Phone Signal Repeater
Intelligent Wifi GSM Signal Booster Mobile Phone Signal Repeater
Specifications
| model | color | frequency | ||
| uplink | downlink | |||
| G900-65-10-O | off-white | 890-915 | 935-960 | |
| Electrical items | index | |||
| max gain | 65±3dB | |||
| uplink output power | ≥10,17dBm | |||
| Downlink output power | ≥10,17dBm | |||
| Noise figure (Max gain) | ≤5.0dB | |||
| Pass band ripple | ≤4.0dB | |||
| ALC/AGC (range) | ≥30dB | |||
|
Intermediation attenuation
|
Output 10dBm≤-50dBc | |||
| Output 17dB≤-45dBc | ||||
| Output 20dBm≤-40dBc | ||||
| Output 23dBm≤-36dBc | ||||
| Max input power | ≤-25dBm | |||
|
Spurious Emission is 2.5MHz away from working band edge
|
9kHz～150kHz | ≤-36dBm @1kHz | ||
| 150kHz～30MHz | ≤-36dBm @10kHz | |||
| 30MHz～1GHz | ≤-36dBm @100kHz | |||
| 1GHz～12.75GHz | ≤-36dBm @1MHz | |||
| transmission delay | ≤1.0μs | |||
| Indicator lights | ISO(white and blue light):isolation indicator | |||
| DN (Red):downlink working indicator | ||||
| UP (green):uplink working indicator | ||||
| Working voltage | DC 5.0V | |||
| working current | ≤1.5A | |||
| Power adaptor | AC 100～240V,50/60Hz | |||
| Ambient temperature | -5℃～+45℃ | |||
| relative humidity | ≤85% | |||
|
structural items
|
index | |||
| RF connector | SMA-F | |||
| Power port | KLD-40-17 | |||
| Dimensions | 150×115×27mm | |||
| weight | ≤0.5Kg | |||
Features
● testing the isolation of outdoor and indoor antenna
● Automatic adjustment (AGC) big coverage
● High-speed figure ALC
● output power indication
● automatically be standby without calls.
●automatically shut off of uplink and downlink once self-excitation.
● Clearance noise function of uplink and no interference to base station
● Uplink and downlink gain automatic balance;
●Small size, light weight, beautiful appearance, high gain and low power dissipation.
● Low noise amplifying, improving communication quality and reduction of dropped calls;
●Good aluminum shell shield, greatly improving the anti-interference ability.
● Easy installation and operation
Working area:
- Residential areas
- Villas
- All kinds of entertainments, e.g. KTV
- Underground bar and coffee house
- Small conference room
- Signal blind spot of business trip, traveling, home and offices etc.
Package
Main unit 1pc
Power supply 1pc
User manual 1pc

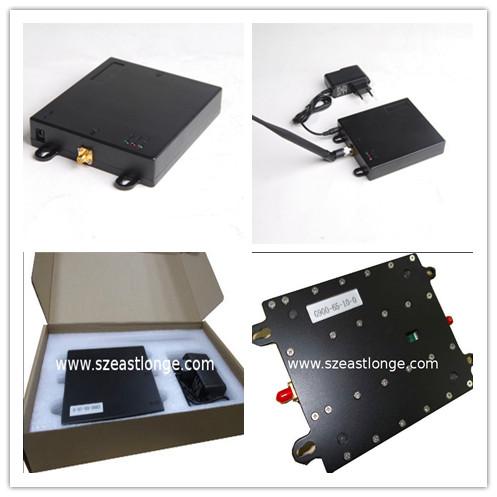

5 Pictures for products
Picture of company

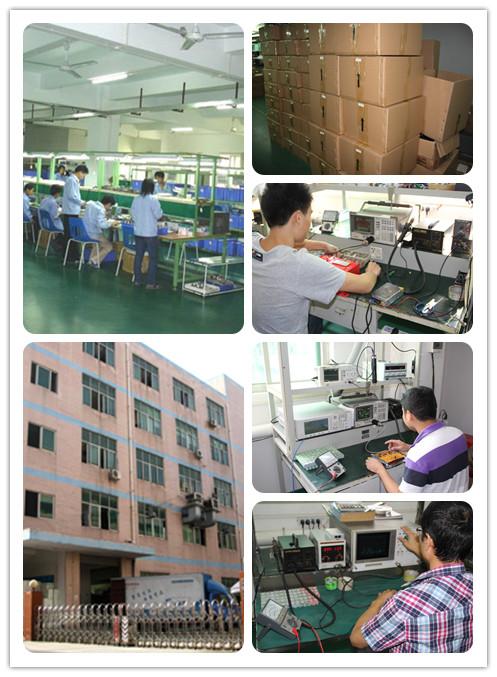

Picture of factory
Picture of fairs
Picture of certification
