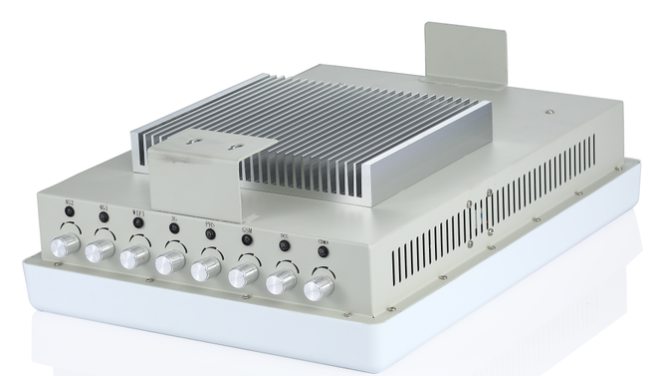

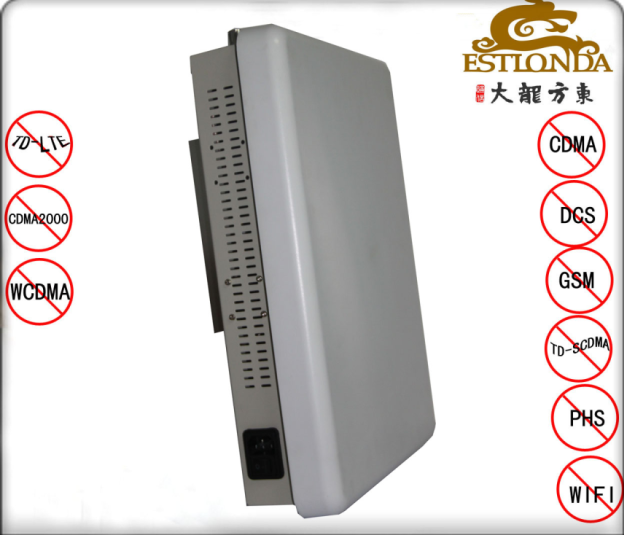

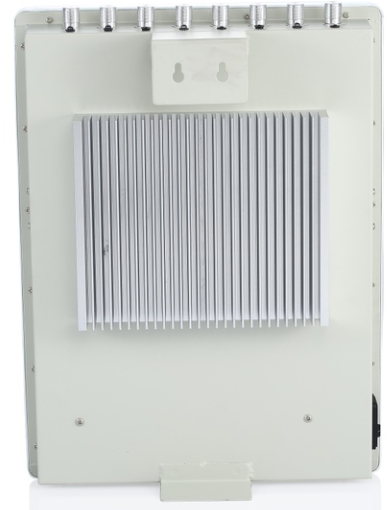

EST-502K8 mobile phone +WIFI+4G Adjustable Internal Antenna jammer

Specifications

TX Frequency

CDMA: 869-894MHz

GSM: 925-960MHz

DCS: 1805-1880MHz

PHS: 1900-1990MHz

3G: 2110-2150MHz

WIFI: 2400-2500MHz

4G1: 2300-2390MHz

4G2: 2550-2660MHz

Available system :Include analog (AMPS, TACS, NMT) and digital (GPRS,GSM,

3G, DCS, CDMA, PDC, TDMA, PHS, PCS, IDEN, W-CDMA,UMTS,

Wifi / Blue Tooth/wireless video ,4G)

Single output power -200mA / 2W

Power input AC160V-240V

Power output 16W

Jamming range Adjustable Radius: 1-40 M

【the Cellular signal must ≤-85dBm in the location】

The jamming radius still depends on the strength signal in given area

Safety regulation AC Adapter UL (E190582)

CSA (LR112971 Level 3)

Dimension 400(L)×300(W)×130(H)mm

Weight 4.5kg

Temperature -10 to +55℃

Relative humidity ≤90%(RH)

Air pressure 86~106kPa

Working Area

1. Conference room, auditoriums, law court, library, exam room, school, cinema, theater, and hospital etc.

2. At places where using mobile phones is prohibited such as government, military, finance, security, police and command center etc

.
