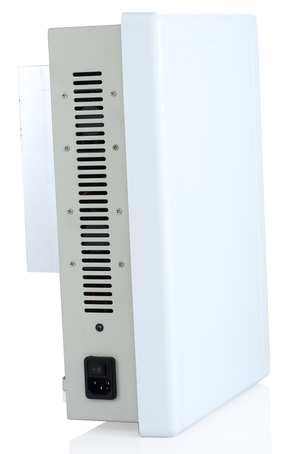

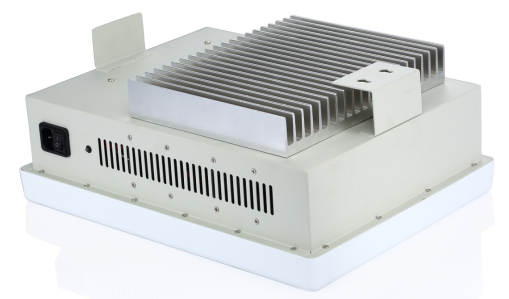

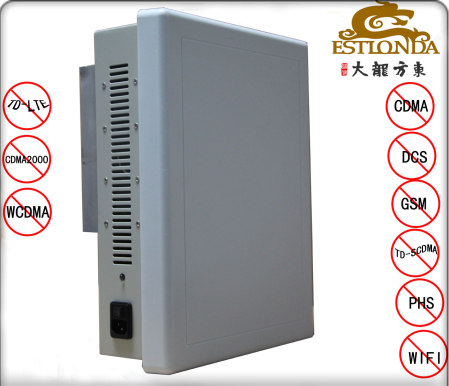

EST-505K8 Medium-Power Built-in Antenna Mobile Phone Signal jammer

Specifications

TX Frequency

869-894MHz CDMA

925-960MHz GSM

1805-1880MHz DCS

1900-1990MHz PHS

2110-2150MHz 3G

2400-2500MHz WIFI

2300-2390MHz LTE1(4G1)

2550-2660MHz LTE2(4G2)

Available system :Include analog (AMPS, TACS, NMT) and digital (GPRS,GSM,

3G, DCS, CDMA, PDC, TDMA, PHS, PCS, IDEN, W-CDMA,UMTS,

Wifi / Blue Tooth/wireless video ,4G)

Single output power 5W+/-200mA

Power input AC160V-240V

Power output 40W

Jamming range Adjustable Radius: 1-40 M

【the Cellular signal must ≤-85dBm in the location】

The jamming radius still depends on the strength signal in given area

Safety regulation AC Adapter UL (E190582)

CSA (LR112971 Level 3)

Dimension 400(L)×300(W)×160(H)mm

Weight 6kg

Temperature -10 to +55℃

Relative humidity ≤90%(RH)

Air pressure 86~106kPa

Working Area

1. Conference room, auditoriums, law court, library, exam room, school, cinema, theater, and hospital etc.

2. At places where using mobile phones is prohibited such as government, military, finance, security, police and command center etc.

.
