510mm Antenna 960MHz 190W Backpack Cell Phone Jammer 2G 3G 4G
6 Bands High Power Portable Backpack Cell Phone 2G 3G 4G & WiFi Signal Jammer with 7 Cooling fans
1. Technology
*Frequency Bands(Can be customized):
1. GSM: 925-960MHz
2. DCS: 1805-1880MHz
3. 3G: 2110-2170MHz
4. 4G 2600: 2570-2690MHz
5. 4G 800: 791-821MHz
6. 2.4G WiFi / Bluetooth: 2400-2500MHz
*Colour: Army Green
*Antenna: 6 pcs high-gain omni-directional FRP antennas
*Shielding Radius: up to 150m (@-75dBm, still depends on the signal strength in given area)
*Available system: Include analog (AMPS,TACS,NMT) and digital (GPRS,GSM,DCS,CDMA,PDC,TDMA,PHS,
PCS,IDEN,UMTS,3G,4G,4G LTE,Wifi / Bluetooth/wireless video,UMTS), etc.
*Function: effectively block worldwide 2G / 3G / 4G mobile & WiFi / Bluetooth network, to prohibit calls / SMS / internet..., to prevent information leakage / eliminate potential artificial threats.
Product Name:
|
6 Bands High Power Portable Backpack Cell Phone 2G 3G 4G & WiFi Signal Jammer with 7 Cooling fans |
Model No.:
|
EST-830L6
|
Color:
|
Army Green
|
MOQ:
|
1 piece
|
Antenna:
|
6 pcs high-gain omni-directional FRP antennas
|
Single Output Power:
|
+45dBm / 32W
|
| Total Output Power: | 190W |
Shielding Radius
|
up to 150m (@-75dBm, still depends on the signal strength in given area) |
Available System:
|
Include analog (AMPS,TACS,NMT) and digital (GPRS,GSM,DCS,CDMA,PDC,TDMA,PHS,PCS,IDEN,UMTS,3G,4G, 4G LTE,Wifi / Bluetooth/wireless video,UMTS), etc. |
Power Supply:
|
AC / DC adapter(Input: AC100V-240V; Output: DC 27V 20A); or External Emergency Power: any external power adapter or battery under DC24V 30A |
Dimension:
|
375*320*120 mm (excluding antennas)
|
| Antenna(L): | 510mm (Gain: 5-6dBi) |
Main Unit Weight:
|
10kg
|
| Package Weight: | about 18kg |
OEM:
|
Available
|
Logo Printing:
|
Available if the order quantity is large enough.
|
Packing:
|
1 pcs gift box for one device, neutral packing
|
Working Temperature:
|
-40℃ ~ +55℃
|
Relative Humility:
|
≤90%(RH)
|
Air Pressure:
|
86~106kPa
|
Safety Regulation:
|
AC Adapter UL (E190582) / CSA (LR112971 Level 3)
|
2. Application Place
*Whenever information security and high confidentiality is needed, to prevent information leakage at sensitive places where using mobile phones or other radio communication devices is prohibited such as government, military, finance, security, police and command center.
3. Packing List 1). Portable signal jammer main unit-----------------------1 piece 2). Antenna--------------------------------------------------------1 set (6 pieces) 3). AC power cord------------------------------------------------1 piece

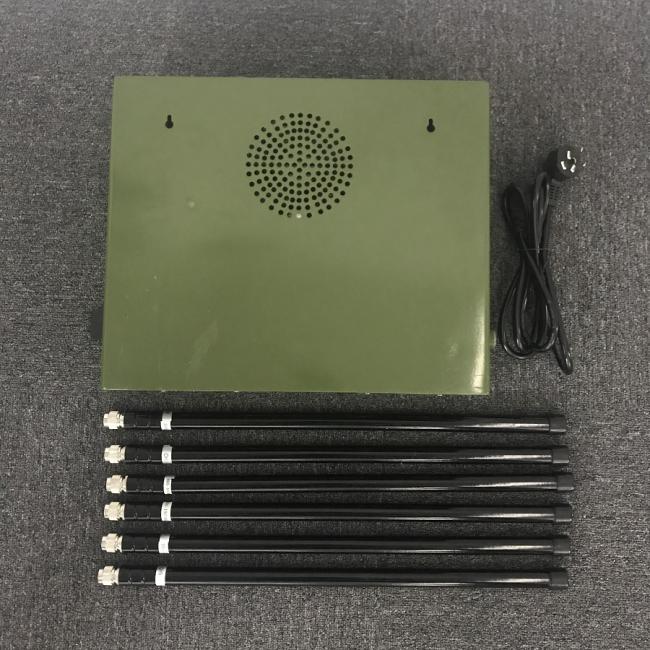

4. Product Photos

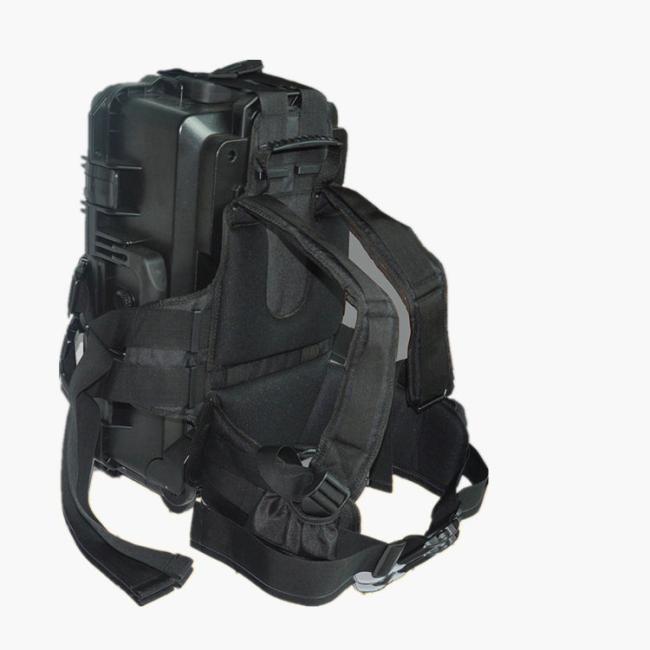

Optional Backpack:
